LPH1-03C24-3080-00

Active

New Energy

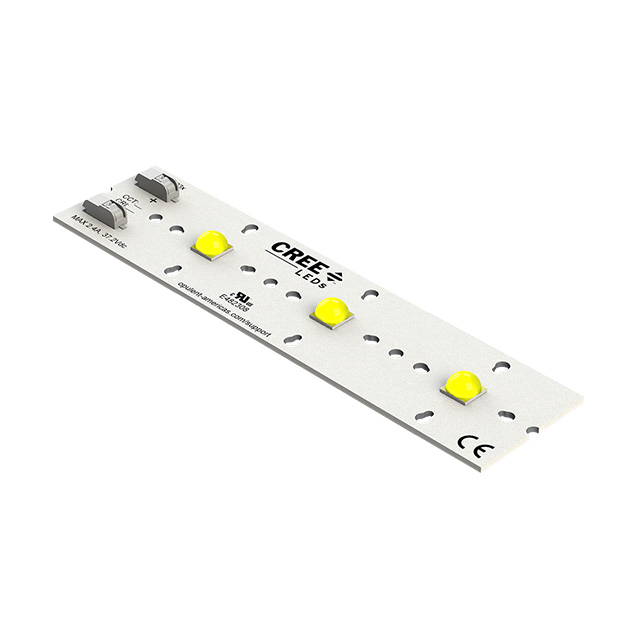

LED MOD XHP70.2 WH LNR STR 3000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP70.2 WH LNR STR 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	LPH1-03C24-3080-00

CCT (K)	3000 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Test	1.05 A
Lens Type	Domed
Lumens/Watt @ Current - Test	145 lm/W
Luminous Flux @ Current/Temperature	5130 lm
Size / Dimension [x]	5.2 in
Size / Dimension [y]	32.99 mm
Temperature - Test	85 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	33.6 V

Part	Voltage - Forward (Vf) (Typ)	Configuration	Color	Temperature - Test	Lens Type	Lumens/Watt @ Current - Test	Type	Current - Test	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	CCT (K)	Luminous Flux @ Current/Temperature	CCT (K)
New Energy LPH1-03C24-2780-00	33.6 V	Linear Light Strip	Warm White	85 °C	Domed	126 lm/W	LED Module	1.05 A	32.99 mm	5.2 in	80	2700 K
New Energy LPH1-03C24-5070-00	33.6 V	Linear Light Strip	Cool White	85 °C	Domed	156 lm/W	LED Module	1.05 A	32.99 mm	5.2 in	70	5000 K	5490 lm	5-Step MacAdam Ellipse
New Energy LPH1-03C24-3080-00	33.6 V	Linear Light Strip	Warm White	85 °C	Domed	145 lm/W	LED Module	1.05 A	32.99 mm	5.2 in	80	3000 K	5130 lm
New Energy LPH1-03C24-5780-00	33.6 V	Linear Light Strip	Cool White	85 °C	Domed	156 lm/W	LED Module	1.05 A	32.99 mm	5.2 in	80	5700 K	5490 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 36.31

General part information

LED Lighting COBs Engines Modules LED Module XHP70.2 White, Warm Linear Light Strip
