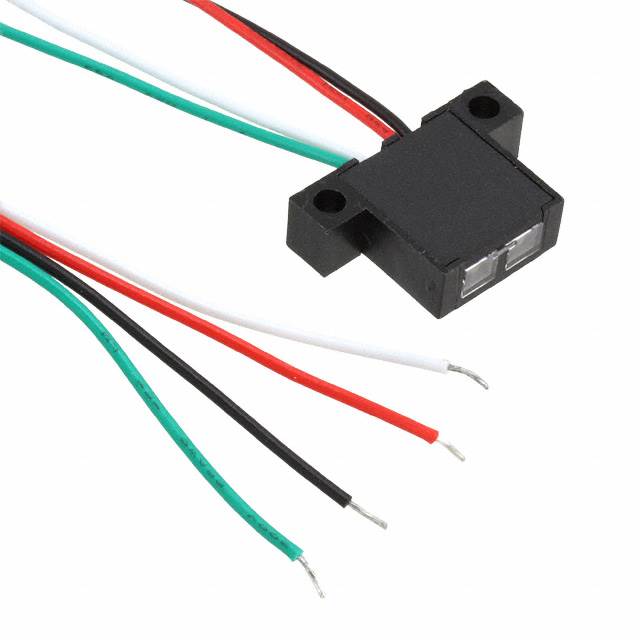

OPB732WZ

Active

TT Electronics/Optek Technology

SNSR OPTO TRANS 76.2MM REFL C-MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SNSR OPTO TRANS 76.2MM REFL C-MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB732WZ

Current - Collector (Ic) (Max) [Max]	50 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module, Pre-Wired
Sensing Distance	3 in
Sensing Distance	76.2 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Sensing Method	Sensing Distance	Sensing Distance	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - DC Forward (If) (Max)	Current - Collector (Ic) (Max) [Max]	Package / Case
TT Electronics/Optek Technology OPB732WZ	85 °C	-40 °C	Chassis Mount	Reflective	3 in	76.2 mm	30 V	50 mA	50 mA	Module Pre-Wired

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 3" (76.2mm) Module, Pre-Wired
