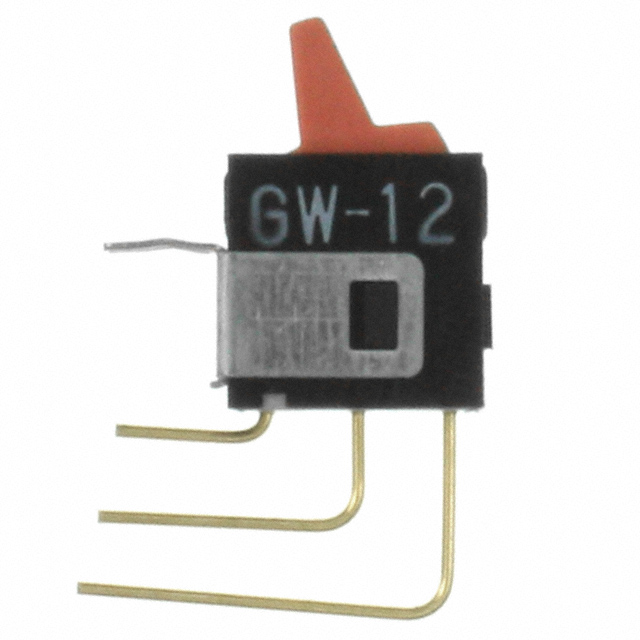

GW12LCV

Active

NKK Switches

ROCKER SWITCH, SPDT, ON-ON, SOLDER TERMINAL, PADDLE ACTUATOR, THROUGH HOLE-RIGHT ANGLE,

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, SPDT, ON-ON, SOLDER TERMINAL, PADDLE ACTUATOR, THROUGH HOLE-RIGHT ANGLE,

Technical Specifications

Parameters and characteristics for this part

Specification	GW12LCV

Actuator Marking	No Marking
Actuator Type	Paddle
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Electrical Life	Approval Agency	Circuit	Actuator Marking	Voltage Rating - AC	Switch Function	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Actuator Type
NKK Switches GW12LCV	-30 ░C	85 °C	Sealed - Flux Protection	50000 Cycles	CSA UL	SPDT	No Marking	28 V	On-On	Right Angle Through Hole Vertical	28 V	Red	PC Pin	0.4 VA	Paddle
NKK Switches GW12LCP	-30 ░C	85 °C	Sealed - Flux Protection	50000 Cycles	CSA UL	SPDT	No Marking	28 V	On-On	Through Hole	28 V	Red	PC Pin	0.4 VA	Paddle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle, Vertical
