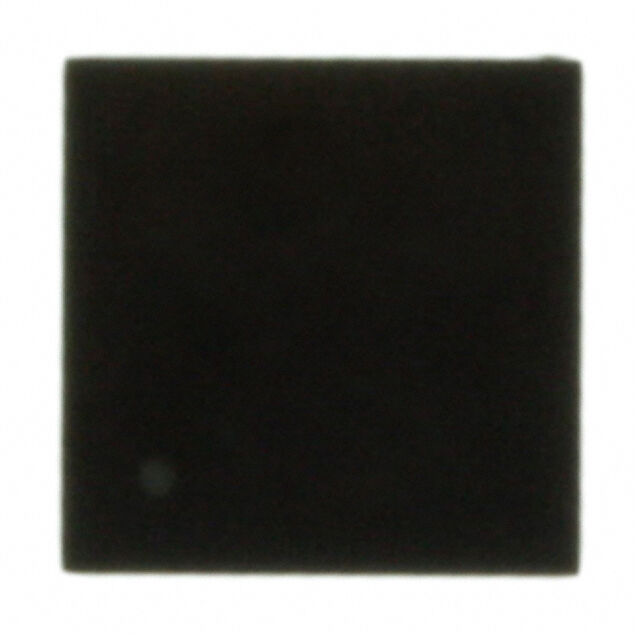

USB1T1103MHX

Obsolete

ON Semiconductor

IC TRANSCEIVER HALF 1/1 16MHBCC

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC TRANSCEIVER HALF 1/1 16MHBCC

Technical Specifications

Parameters and characteristics for this part

Part	Type	Duplex	Mounting Type	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Package / Case [x]	Package / Case [y]	Package / Case	Supplier Device Package	Receiver Hysteresis
ON Semiconductor USB1T11AM	Transceiver	Half	Surface Mount	12 Mbps	3.6 V	3 V	85 °C	-40 °C	USB 1.1	0.154 in	3.9 mm	14-SOIC
ON Semiconductor USB1T1103MPX	Transceiver	Half	Surface Mount	12 Mbps	5.5 V	4 V	85 °C	-40 °C	USB 2.0			14-WFQFN Exposed Pad	14-MLP (2.5x2.5)	450 mV
ON Semiconductor USB1T1103MHX	Transceiver	Half	Surface Mount	12 Mbps	5.5 V	4 V	85 °C	-40 °C	USB 2.0			16-WFQFN Exposed Pad	16-MHBCC (3x3)	450 mV
ON Semiconductor USB1T1103MHX	Transceiver	Half	Surface Mount	12 Mbps	5.5 V	4 V	85 °C	-40 °C	USB 2.0			16-WFQFN Exposed Pad	16-MHBCC (3x3)	450 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/1 Transceiver Half USB 2.0 16-MHBCC (3x3)
