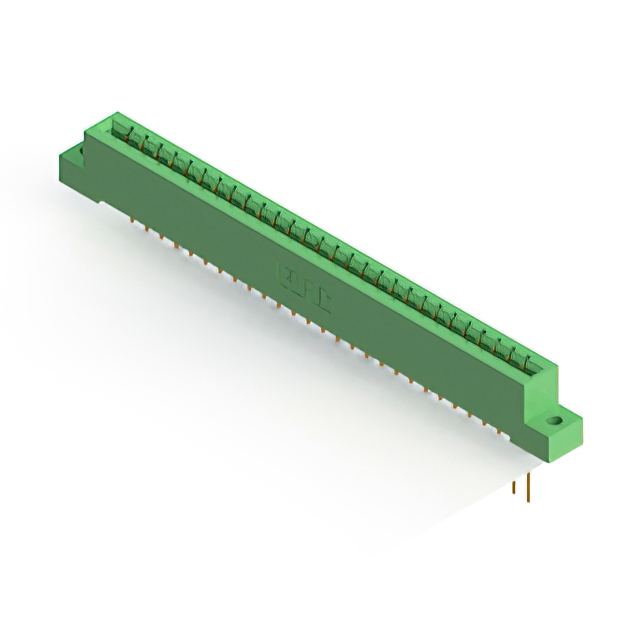

333-028-541-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-028-541-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-028-541-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
333-028 Series
...
| Part | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Gender | Read Out | Features | Card Type | Contact Finish | Mounting Type | Termination | Material - Insulation | Number of Positions | Termination Rows | Contact Material | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 14 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 2 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Female | Dual | Card Extender | Non Specified - Dual Edge | Gold | Board Edge Straddle Mount | Solder | Polyester Thermoplastic | 28 | 2 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 14 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 2 | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Female | Dual | Non Specified - Dual Edge | Gold | Through Hole Right Angle | Wire Wrap | Polyester Thermoplastic | 28 | 2 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | |||
EDAC Inc. | 14 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 2 | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Female | Dual | Non Specified - Dual Edge | Gold | Through Hole | Wire Wrap | Polyester Thermoplastic | 28 | 2 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 14 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 2 | 10 Áin | 0.25 Ám | Female | Dual | Non Specified - Dual Edge | Gold | Through Hole | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 28 | 2 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||||
EDAC Inc. | 28 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | Flush Mount Side Opening Unthreaded | Female | Single | Non Specified - Single Edge | Gold | Through Hole Right Angle | Wire Wrap | Polyester Thermoplastic | 28 | 1 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | |||
EDAC Inc. | 14 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 2 | 10 Áin | 0.25 Ám | Female | Dual | Non Specified - Dual Edge | Gold | Through Hole | Solder | Polyester Thermoplastic | 28 | 2 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 28 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Female | Single | Non Specified - Single Edge | Gold | Through Hole | Wire Wrap | Polyester Thermoplastic | 28 | 1 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | |||
EDAC Inc. | 28 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | Female | Single | Non Specified - Single Edge | Gold | Through Hole | Solder | Polyester Thermoplastic | 28 | 1 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | |||
EDAC Inc. | 28 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | Female | Single | Non Specified - Single Edge | Gold | Through Hole | Wire Wrap | Polyester Thermoplastic | 28 | 1 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||||
EDAC Inc. | 28 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Female | Single | Non Specified - Single Edge | Gold | Through Hole Right Angle | Solder | Polyester Thermoplastic | 28 | 1 | Copper Alloy | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-028 Series
28 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
