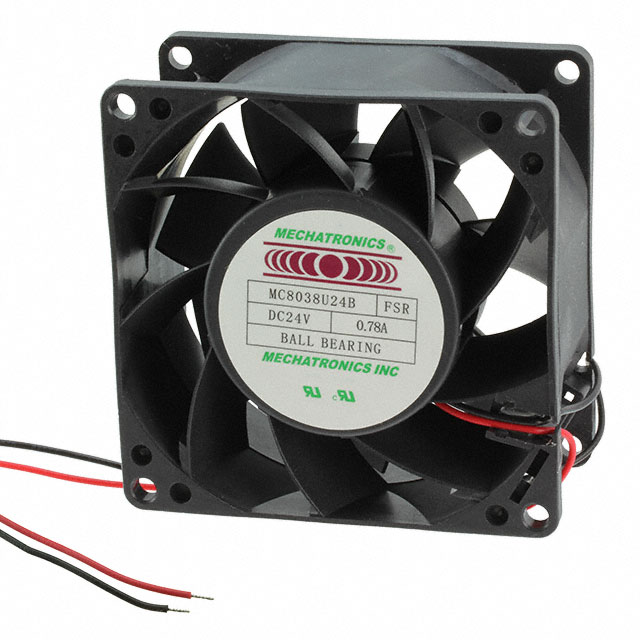

MC8038U24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +2

MC8038U24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC8038U24B-FSR

Air Flow	95.6 CFM
Air Flow	2.68 m³/min
Approval Agency	cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.89 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	60.2 dB(A)
RPM	6800 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	1.15 in H2O
Static Pressure	286.5 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	180.08 g
Weight	0.397 lb
Width [y]	38 mm

MC8038 Series

Part	Noise	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	RPM	Features	Current Rating (Amps)	Static Pressure	Static Pressure	Approval Agency	Air Flow	Air Flow	Termination	Bearing Type	Fan Type	Material - Blade	Width [y]	Voltage - Rated	Voltage - Rated [custom]
Mechatronics Bearing Group MC8038L24B-FSR	39 dB(A)	80 mm	80 mm	180.08 g	0.397 lb	3400 RPM	Thermal Overload Protector (TOP)	140 mA	69.7 Pa	0.28 in H2O	cUL TUV UL	45.5 CFM	1.27 mł/min	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	38 mm	24 VDC
Mechatronics Bearing Group MC8038E12B-FSR-PC	52.1 dB(A)	80 mm	80 mm	180.08 g	0.397 lb	5800 RPM	Parylene Coating Thermal Overload Protector (TOP)	930 mA	209.2 Pa	0.84 in H2O	CE cUL TUV UL	81.5 CFM	2.28 m³/min	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	38 mm	12 VDC
Mechatronics Bearing Group MC8038H24B-FSR	48.2 dB(A)	80 mm	80 mm	180.08 g	0.397 lb	5000 RPM	Thermal Overload Protector (TOP)	0.33 A			cUL TUV UL	69.9 CFM	1.96 m³/min	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	38 mm	24 VDC
Mechatronics Bearing Group MC8038U24B-FSR	60.2 dB(A)	80 mm	80 mm	180.08 g	0.397 lb	6800 RPM	Thermal Overload Protector (TOP)	0.89 A	286.5 Pa	1.15 in H2O	cUL TUV UL	95.6 CFM	2.68 m³/min	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	38 mm	24 VDC
Mechatronics Bearing Group MC8038U12B2-FSR	60.2 dB(A)	80 mm	80 mm	180.08 g	0.397 lb	6800 RPM	Locked Rotor Sensor Thermal Overload Protector (TOP)	1.5 A	286.5 Pa	1.15 in H2O	cUL TUV UL	95.6 CFM	2.68 m³/min	3 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	38 mm	12 VDC
Mechatronics Bearing Group MC8038H48B-FSR	48.2 dB(A)	80 mm	80 mm	180.08 g	0.397 lb	5000 RPM	Thermal Overload Protector (TOP)	0.19 A			cUL TUV UL	69.9 CFM	1.96 m³/min	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	38 mm		48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.97
		10	$ 15.24
		25	$ 14.33
		80	$ 13.79
		160	$ 12.70
		320	$ 11.88
		560	$ 11.70

Description

General part information

MC8038 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 95.6 CFM (2.68m³/min) 2 Wire Leads

Documents

Technical documentation and resources

AC/DC Fans & Blowers Catalog

Datasheet

DC Lead Wire Specs

DC Fan, Blower Lead Wire Spec

Datasheet
