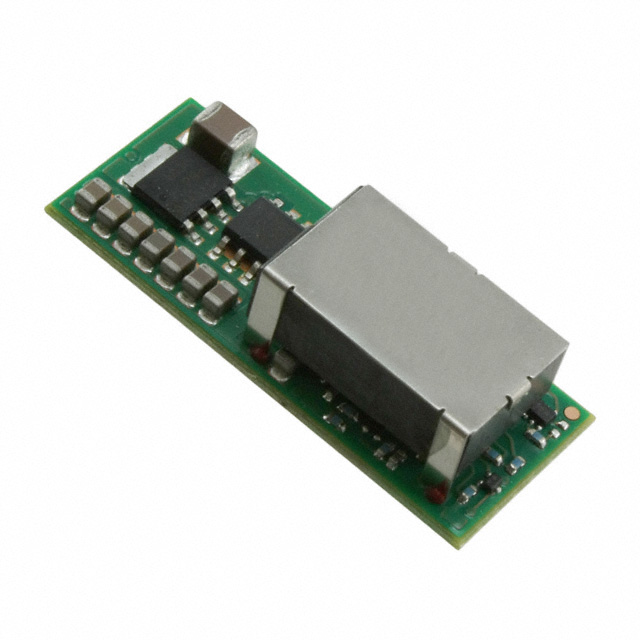

APTS020A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.7-5.5V 110W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APTS020A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.7-5.5V 110W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APTS020A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 92 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 110 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 0.53 in |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 22.67 | |
| 5 | $ 22.49 | |||
| 10 | $ 22.32 | |||
| 25 | $ 21.97 | |||
| 50 | $ 20.92 | |||
| 100 | $ 19.18 | |||
| Digi-Reel® | 1 | $ 22.67 | ||
| 5 | $ 22.49 | |||
| 10 | $ 22.32 | |||
| 25 | $ 21.97 | |||
| 50 | $ 20.92 | |||
| 100 | $ 19.18 | |||
| Tape & Reel (TR) | 250 | $ 17.26 | ||
Description
General part information
APTS020 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 5.5V 20A 4.5V - 14V Input
