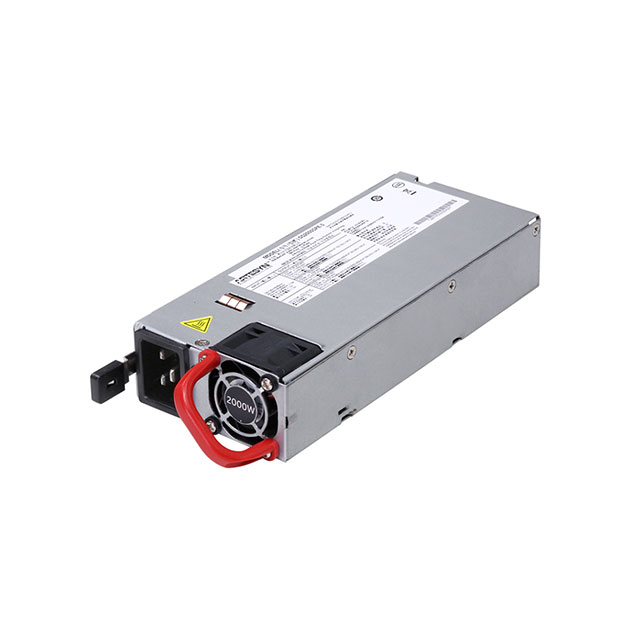

DS2000SPE-3

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 12.2V 12V 2000W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 12.2V 12V 2000W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output 1	Number of Outputs	Voltage - Output 1	Mounting Type	Applications	Power (Watts)	Features	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 2	Current - Output 2
ARTESYN / Advanced Energy DS2000-3-001	90 VAC	264 VAC	CB CCC CE DEMKO UL	164.2 A	1	12 V	Rack Mount	ITE (Commercial)	2000 W	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	Front End	42.9 mm	11.6 "	106.7 mm	5.47 in	295.7 mm	1.69 in	50 °C	-10 °C	89 %
ARTESYN / Advanced Energy DS2000-3	90 VAC	264 VAC	CB CCC CE DEMKO UL	164.2 A	1	12 V	Rack Mount	ITE (Commercial)	2000 W	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	Front End	42.9 mm	11.6 "	106.7 mm	5.47 in	295.7 mm	1.69 in	50 °C	-10 °C	89 %
ARTESYN / Advanced Energy DS2000SPE-3	180 VAC	264 VAC	CB CE cUL DEMKO UL	163.9 A	2	12.2 V	Rack Mount	ITE (Commercial)	2000 W	Standby Output	Front End	38.5 mm	7.3 in	86.3 mm	3.4 in	185.4 mm	1.52 in	60 °C	0 °C	94 %	12 V	3.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 467.23

General part information

Front End AC DC Converters 2 Output 12.2V 12V 180 ~ 264 VAC Input

Technical documentation and resources
