DML-10-A-V-T-A

Active

Adam Tech

CONN HEADER VERT 10POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry Brochure Datasheet +1

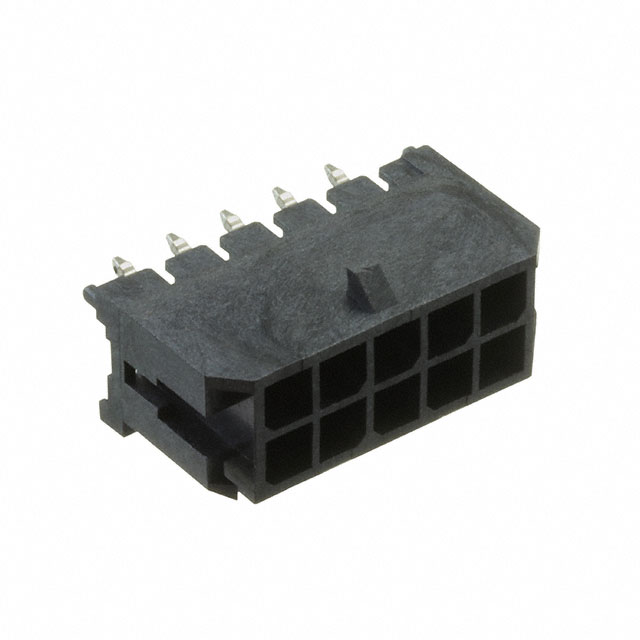

DML-10-A-V-T-A

Active

Adam Tech

CONN HEADER VERT 10POS 3MM

Deep-Dive with AI

DocumentsMedical Industry Brochure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-10-A-V-T-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

DML-10 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Voltage Rating	Insulation Material	Current Rating (Amps)	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Features	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Shape	Connector Type	Number of Positions Loaded	Number of Rows	Mounting Type	Material Flammability Rating	Style	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)
Adam Tech DML-10-A-V-T-TSMT-T/R	3 mm	0.118 in	Black	250 VAC	Thermoplastic	5 A	Solder	Shrouded - 4 Wall	-25 °C	105 ░C	0.118 in	3 mm	10	Tin	Solder Retention	Male Pin	9.91 mm	0.39 in	Brass	Square	Header	All	2	Surface Mount	UL94 V-0	Board to Cable/Wire	Locking Ramp
Adam Tech DML-10-A-H-T-A-TSMT-T/R	3 mm	0.118 in	Natural	250 VAC	Thermoplastic	5 A	Solder	Shrouded - 4 Wall	-25 °C	85 °C	0.118 in	3 mm	10	Tin	Solder Retention	Male Pin			Brass	Square	Header	All	2	Surface Mount Right Angle	UL94 V-0	Board to Cable/Wire	Locking Ramp	0.289 "	7.34 mm
Adam Tech DML-10-A-H-T-A	3 mm	0.118 in	Black	250 VDC	Thermoplastic		Solder	Shrouded - 4 Wall			0.118 in	3 mm	10	Tin		Male Pin			Brass	Square	Header	All	2	Through Hole Right Angle	UL94 V-0	Board to Cable/Wire	Locking Ramp	0.27 "	6.86 mm	3.18 mm	0.125 in	Varies by Wire Gauge
Adam Tech DML-10-A-V-T-A	3 mm	0.118 in	Black	250 VDC	Thermoplastic		Kinked Pin Solder	Shrouded - 4 Wall	-45 °C	125 °C	0.118 in	3 mm	10	Tin	Board Guide	Male Pin	9.91 mm	0.39 in	Brass	Square	Header	All	2	Through Hole	UL94 V-0	Board to Cable/Wire	Locking Ramp			3.18 mm	0.125 in	Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.30
		10	$ 0.99
		100	$ 0.76

Description

General part information

DML-10 Series

Connector Header Through Hole 10 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Medical Industry Brochure

Datasheet

DML-10-A-V-T-A

Deep-Dive with AI

DML-10-A-V-T-A

Deep-Dive with AI

Technical Specifications

DML-10 Series

Pricing

Description

DML-10 Series

Documents

Medical Industry Brochure

Datasheet

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DML-10 Series
