VS-VSKU91/06

Active

Vishay General Semiconductor - Diodes Division

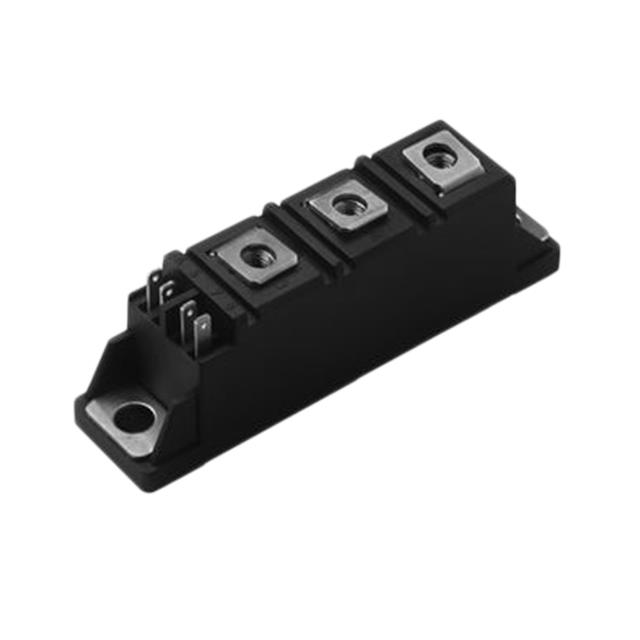

MODULE THYRISTOR 95A ADD-A-PAK

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

MODULE THYRISTOR 95A ADD-A-PAK

Technical Specifications

Parameters and characteristics for this part

Specification	VS-VSKU91/06

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2000 A, 2094 A
Current - On State (It (AV)) (Max)	95 A
Current - On State (It (RMS)) (Max) [Max]	150 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	ADD-A-PAK (3 + 4)
Structure	Common Cathode - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	600 V

Part	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Mounting Type	Structure	Package / Case	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes	Current - On State (It (AV)) (Max)
Vishay General Semiconductor - Diodes Division VS-VSKU91/10	150 A	-40 °C	125 ¯C	2.5 V	2000 A 2094 A	150 mA	1 kV	Chassis Mount	Common Cathode - All SCRs	ADD-A-PAK (3 + 4)	250 mA	2 SCRs	95 A
Vishay General Semiconductor - Diodes Division VS-VSKU91/06	150 A	-40 °C	125 ¯C	2.5 V	2000 A 2094 A	150 mA	600 V	Chassis Mount	Common Cathode - All SCRs	ADD-A-PAK (3 + 4)	250 mA	2 SCRs	95 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 40.47

General part information

SCR Module 600 V 150 A Common Cathode - All SCRs Chassis Mount ADD-A-PAK (3 + 4)
