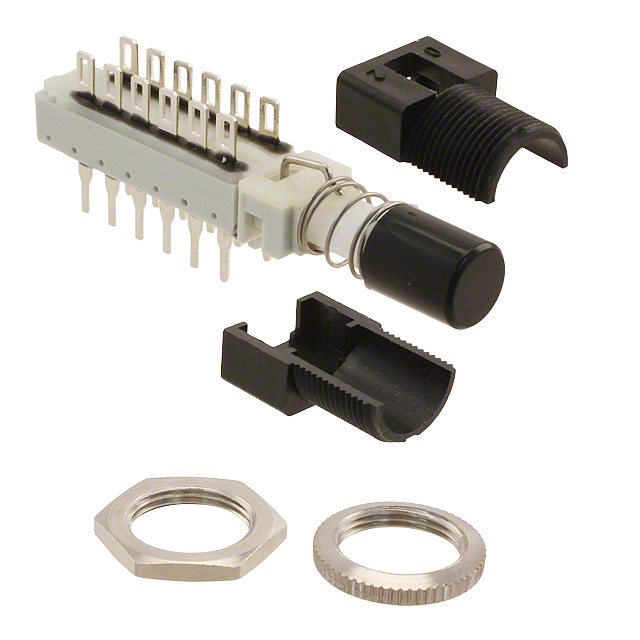

ZF12 FG BK 4U EE

Active

Littelfuse/Commercial Vehicle Products

SWITCH PUSH 4PDT 0.5A 125V

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

SWITCH PUSH 4PDT 0.5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZF12 FG BK 4U EE

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	4PDT
Color - Actuator/Cap	Black
Current Rating (Amps)	500 mA
Electrical Life	100000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Right Angle, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mechanical Life	Mounting Type	Color - Actuator/Cap	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Actuator Marking	Actuator Type	Termination Style	Type	Electrical Life	Panel Cutout Dimensions [diameter]
Littelfuse/Commercial Vehicle Products ZF124UEE
Littelfuse/Commercial Vehicle Products ZF12 FG RD NE18 2A EE
Littelfuse/Commercial Vehicle Products ZF12 FG BK 4U EE	-40 °C	70 °C	4PDT	100000 Cycles	Panel Mount Rear Right Angle	Black	On-On	30 V	500 mA	125 V	No Marking	Button Round	PC Pin Solder Lug	Standard	100000 Cycles	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch 4PDT Standard Panel Mount, Right Angle, Rear
