SGP400TZ-FS

Active

ON Semiconductor

68KHZ PDSO6

Search across all available documentation for this part.

Active

ON Semiconductor

68KHZ PDSO6

Technical Specifications

Parameters and characteristics for this part

Specification	SGP400TZ-FS

Control Features	Ramp, Frequency Control, Current Limit
Frequency - Switching	65 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-20 °C

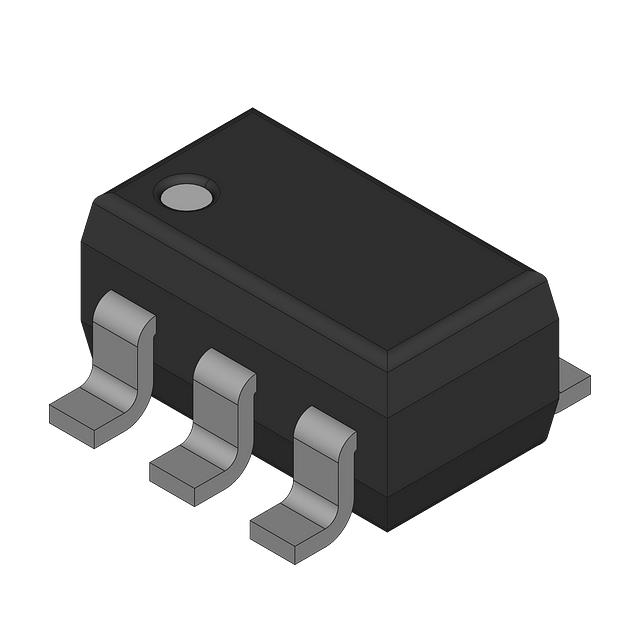

Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
Topology	Flyback
Voltage - Supply (Vcc/Vdd)	22.7 V

Part	Supplier Device Package	Package / Case	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Frequency - Switching	Voltage - Supply (Vcc/Vdd)	Control Features
ON Semiconductor SGP400TZ	SOT-23-6	SOT-23-6	Surface Mount	68 kHz	62 kHz	8 V	30 V	Isolated
ON Semiconductor SGP400TZ-FS	SOT-23-6	SOT-23-6	Surface Mount						-20 °C	85 C	Flyback	65 kHz	22.7 V	Current Limit Frequency Control Ramp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	513	$ 0.59

General part information

Converter Offline Flyback Topology 65kHz SOT-23-6
