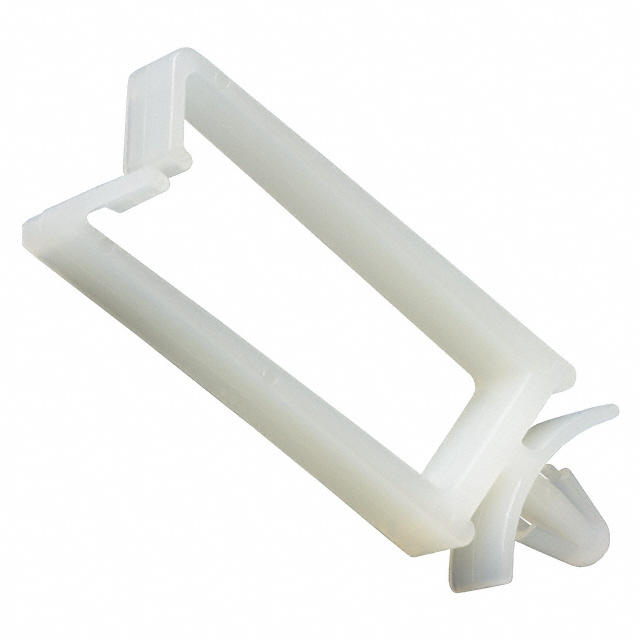

VWS50100-C

Active

Panduit Corp

FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 42.6 MM, 19.1 MM

Search across all available documentation for this part.

Active

Panduit Corp

FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 42.6 MM, 19.1 MM

Technical Specifications

Parameters and characteristics for this part

Specification	VWS50100-C

Color	Natural
Height [z]	1.425 in
Height [z]	36.2 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [x]	0.5 in
Opening Size [x]	12.7 mm
Opening Size [z]	25.4 mm
Opening Size [z]	1 in
Panel Hole Size [Max]	4.88 mm
Panel Hole Size [Max]	0.192 in
Panel Hole Size [Min]	4.75 mm
Panel Hole Size [Min]	0.187 in
Panel Thickness [Max]	2.03 mm
Panel Thickness [Max]	0.08 in
Panel Thickness [Min]	0.03 in
Panel Thickness [Min]	0.76 mm
Type	Clip, Wire Saddle
Width	0.25 in
Width	6.35 mm

Part	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Material Flammability Rating	Height [z]	Height [z]	Type	Mounting Type	Color	Opening Size [x]	Opening Size [z]	Opening Size [x]	Opening Size [z]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Material	Width	Width
Panduit Corp VWS50100-C	4.75 mm	4.88 mm	0.187 in	0.192 in	UL94 V-2	1.425 in	36.2 mm	Clip Wire Saddle	Arrowhead Winged	Natural	0.5 in	25.4 mm	12.7 mm	1 in	2.03 mm	0.08 in	0.03 in	0.76 mm	Polyamide (PA66) Nylon 6/6	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.500" L x 1.000" H (12.70mm x 25.40mm)
