2212C SL002

Active

ALPHA WIRE

MULTI-PAIR 4CON 22AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4CON 22AWG SLATE 500'

Technical Specifications

Parameters and characteristics for this part

Specification	2212C SL002

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.232 in
Jacket (Insulation) Diameter [diameter]	5.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Usage	Shield Coverage	Jacket (Insulation) Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Cable Type	Jacket Color	Features	Wire Gauge	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 2212C SL002	Communication Control	100 %	Poly-Vinyl Chloride (PVC)	Aluminum	-20 C	80 C	150 V	Multi-Pair	Slate	Drain Wire	22 AWG	Foil	Copper Tinned	7	30 AWG	Poly-Vinyl Chloride (PVC)	4	0.232 in	5.89 mm	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 603.05

General part information

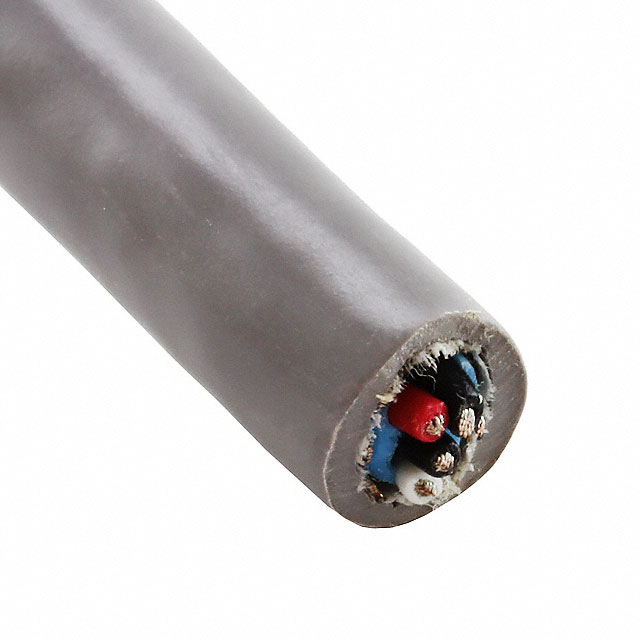

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
