FPTRIPLE-W

Active

HELLERMANNTYTON

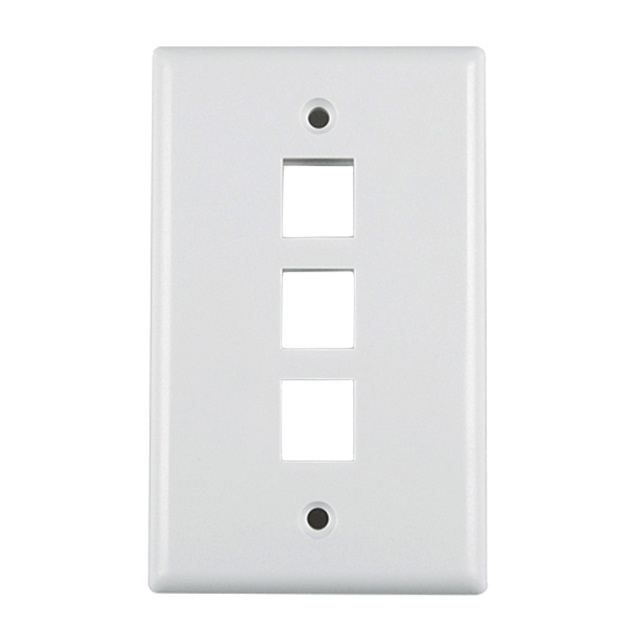

FACEPLATE SNGL GANG 3PORT WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

FACEPLATE SNGL GANG 3PORT WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	FPTRIPLE-W

Color	White
Depth [z]	5.5 mm
Depth [z]	0.217 in
For Use With/Related Products	Modular Jacks
Length	4.5 in
Length	114.3 mm
Material	Acrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating	UL94 V-0
Number of Ports	3
Port Direction	Straight
Style	Single Gang
Type	Faceplate
Width	69.8 mm
Width	2.748 in

Part	Type	Port Direction	For Use With/Related Products	Width	Width	Length	Length	Material	Number of Ports	Depth [z]	Depth [z]	Color	Material Flammability Rating	Style
HELLERMANNTYTON FPTRIPLE-I	Faceplate	Straight	Modular Jacks	69.8 mm	2.748 in	4.5 in	114.3 mm	Acrylonitrile Butadiene Styrene (ABS)	3	5.5 mm	0.217 in	Ivory	UL94 V-0	Single Gang
HELLERMANNTYTON FPTRIPLE-W	Faceplate	Straight	Modular Jacks	69.8 mm	2.748 in	4.5 in	114.3 mm	Acrylonitrile Butadiene Styrene (ABS)	3	5.5 mm	0.217 in	White	UL94 V-0	Single Gang
HELLERMANNTYTON FPTRIPLE-FW	Faceplate	Straight	Modular Jacks	69.8 mm	2.748 in	4.5 in	114.3 mm	Acrylonitrile Butadiene Styrene (ABS)	3	5.5 mm	0.217 in	Off White	UL94 V-0	Single Gang
HELLERMANNTYTON FPTRIPLE-SS	Faceplate	Straight	Modular Jacks	69.8 mm	2.748 in	4.5 in	114.3 mm	Stainless Steel	3	5.5 mm	0.217 in	Silver		Single Gang

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.68

General part information

3 Port Faceplate White Single Gang
