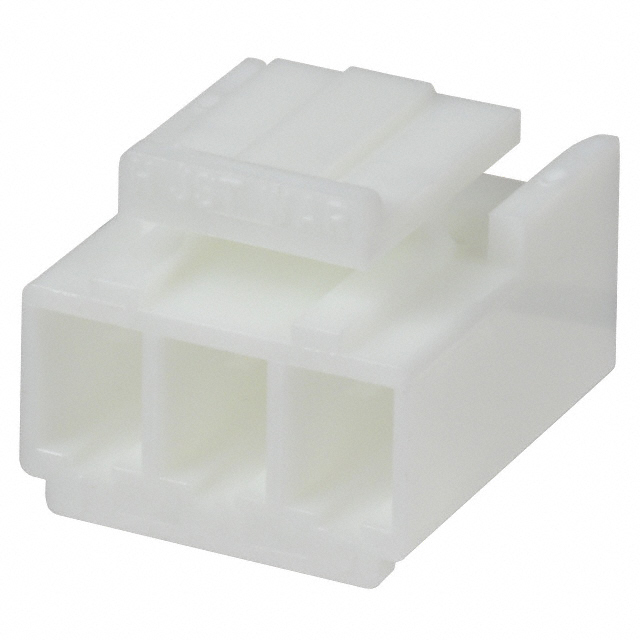

VHR-3M

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

VHR-3M

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHR-3M

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Electric Shock Prevention
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

VHR Series

Part	Contact Termination	Insulation Material	Contact Type	Features	Mounting Type	Pitch [x]	Pitch [x]	Note	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Fastening Type	Number of Positions	Color
JST Sales America Inc. VHR-2M	Crimp	Polyamide (PA6) Nylon 6	Female Socket	Electric Shock Prevention	Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	2	Natural
JST Sales America Inc. VHR-10N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	10	Natural
JST Sales America Inc. VHR-2N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	2	Natural
JST Sales America Inc. VHR-8N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	8	Natural
JST Sales America Inc. VHR-6N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	6	Natural
JST Sales America Inc. VHR-4M	Crimp	Polyamide (PA6) Nylon 6	Female Socket	Electric Shock Prevention	Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	4	Natural
JST Sales America Inc. VHR-4N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	4	Natural
JST Sales America Inc. VHR-11N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	11	Natural
JST Sales America Inc. VHR-9N	Crimp	Polyamide (PA6) Nylon 6	Female Socket		Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock	9	Natural
JST Sales America Inc. VHR-3M	Crimp	Polyamide (PA6) Nylon 6	Female Socket	Electric Shock Prevention	Free Hanging (In-Line)	0.156 in	3.96 mm	Contacts Not Included	-25 °C	85 °C	Receptacle	1	Latch Lock		Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.14
		25	$ 0.12
		50	$ 0.11
		100	$ 0.11
		250	$ 0.09
		500	$ 0.09
		1000	$ 0.08
		2500	$ 0.07

Description

General part information

VHR Series

3 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart

Datasheet
