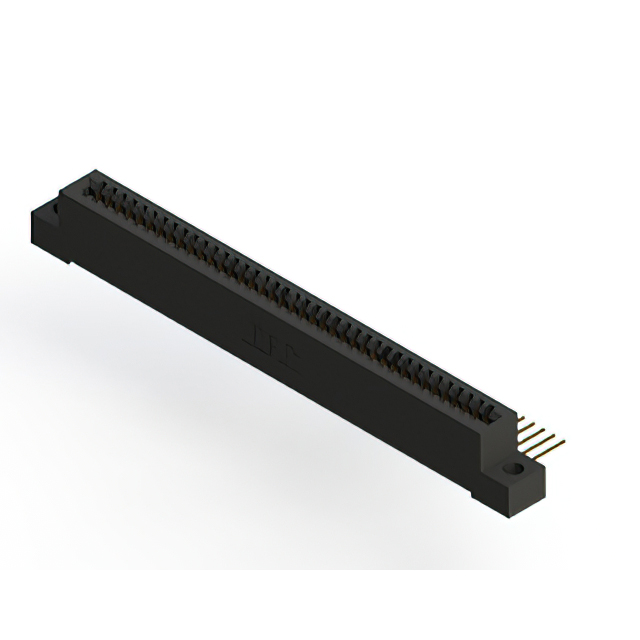

892-039-559-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 39POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-039-559-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 39POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-039-559-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 39 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
892-039 Series
| Part | Number of Rows | Termination Rows | Card Type | Color | Contact Material | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Flange Feature | Termination | Gender | Contact Type | Mounting Type | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Cantilever | Through Hole | 39 | ||
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Solder | Female | Cantilever | Through Hole | 39 | 3.96 mm | 0.156 in |
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Solder | Female | Cantilever | Through Hole | 39 | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Solder | Female | Cantilever | Through Hole Right Angle | 39 | 3.96 mm | 0.156 in |
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Wire Wrap | Female | Cantilever | Through Hole | 39 | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Wire Wrap | Female | Cantilever | Through Hole | 39 | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Solder | Female | Cantilever | Through Hole | 39 | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Wire Wrap | Female | Cantilever | Through Hole | 39 | |||
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Solder | Female | Cantilever | Through Hole Right Angle | 39 | |||
EDAC Inc. | 1 | 1 | Non Specified - Single Edge | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.54 mm | 0.1 in | 39 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | Flush Mount Top Opening Unthreaded | Solder | Female | Cantilever | Through Hole | 39 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-039 Series
39 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
