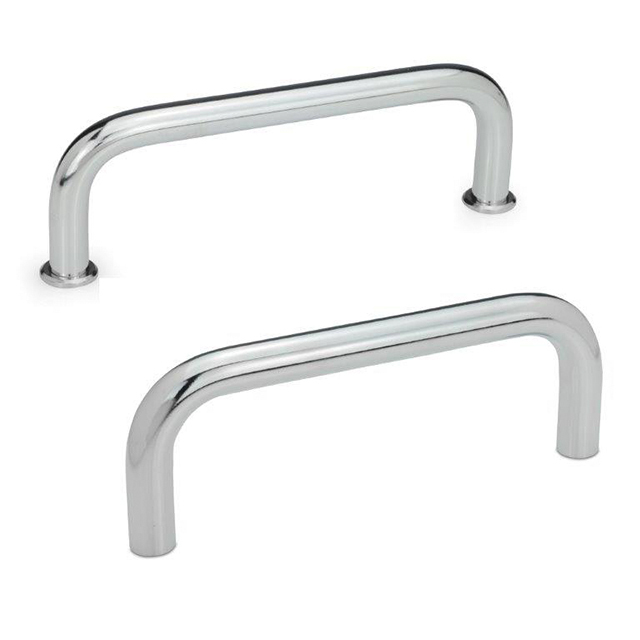

425-10-180-CR

Active

J.W. Winco

HANDLE STEEL MTG CTR 7.09"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE STEEL MTG CTR 7.09"

Technical Specifications

Parameters and characteristics for this part

Part	Length - Center to Center [custom]	Length - Center to Center [custom]	Thread/Screw/Hole Size	Height [z]	Height [z]	Mounting Type	Type	Length - Center to Center [x]	Length - Center to Center [x]
J.W. Winco 425-10-120-CR	119.89 mm	4.72 in	M5	1.69 in	42.93 mm	Screw Holes Back	Instrumentation
J.W. Winco 425-10-200-CR			M5	1.69 in	42.93 mm	Screw Holes Back	Instrumentation	199.9 mm	7.87 in
J.W. Winco 425-10-100-CR			M5	1.69 in	42.93 mm	Screw Holes Back	Instrumentation	100.08 mm	3.94 in
J.W. Winco 425-10-180-CR			M5	1.69 in	42.93 mm	Screw Holes Back	Instrumentation	180.09 mm	7.09 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.21

General part information

Instrumentation Handle Steel Screw Holes, Back
