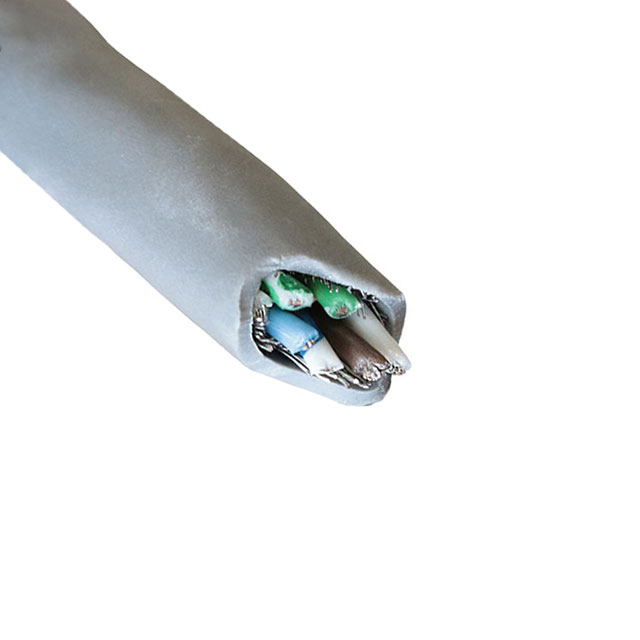

M3422 SL005

Active

ALPHA WIRE

MULTI-PAIR 8CON 24AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 8CON 24AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M3422 SL005

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Voltage	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Shield Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket Color	Cable Type
ALPHA WIRE M3422 SL005	Aluminum Copper Tinned	-20 C	80 C	30.5 m	100 ft	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	8	Braid Foil	65 % 100 %	32 AWG	7	UL Style 2919	24 AWG	0.889 mm	0.035 in	Polypropylene (PP)	Slate	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil, Braid 100.0' (30.5m)
