A-2PA-113-300B2

Active

Amphenol RF

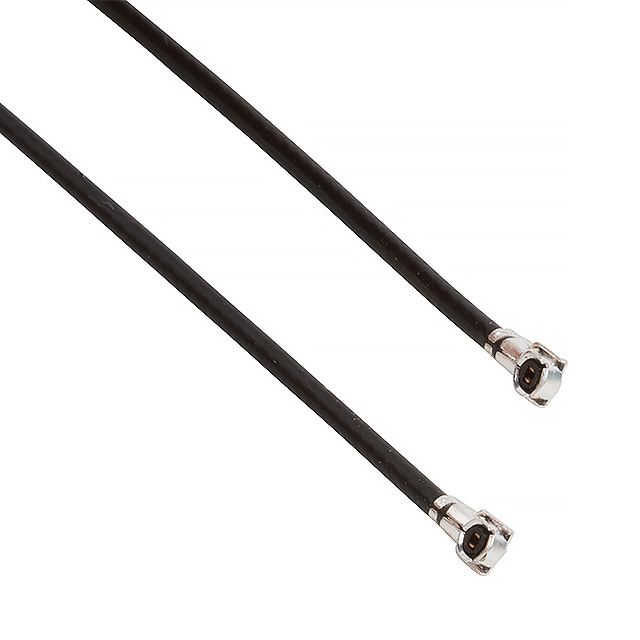

AMMC RIGHT ANGLE PLUG TO AMMC RIGHT ANGLE PLUG 1.13 MM 50 OHM 300 MM (11.8 INCHES)

Search across all available documentation for this part.

Active

Amphenol RF

AMMC RIGHT ANGLE PLUG TO AMMC RIGHT ANGLE PLUG 1.13 MM 50 OHM 300 MM (11.8 INCHES)

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Overall Impedance	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	Style	Features	Length [x]	Length [x]	Frequency - Max [Max]	1st Contact Gender	1st Connector	1st Connector Mounting Type	Cable Type	Color	Length	Length
Amphenol RF A-2PA-113-050B2	90 °C	-40 °C	50 Ohms	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	AMMC to AMMC	Shielded	1.969 in	50 mm	6000 MHz	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	Black
Amphenol RF A-2PA-113-300B2	90 °C	-40 °C	50 Ohms	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	AMMC to AMMC	Shielded	11.811 in	300 mm	6000 MHz	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	Black
Amphenol RF A-2PA-113-100B2	90 °C	-40 °C	50 Ohms	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	AMMC to AMMC	Shielded	3.937 in	0.1 m	6000 MHz	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	Black
Amphenol RF A-2PA-113-500B2	90 °C	-40 °C	50 Ohms	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	AMMC to AMMC	Shielded			6000 MHz	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	Black	50 cm	19.69 "
Amphenol RF A-2PA-113-250B2	90 °C	-40 °C	50 Ohms	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	AMMC to AMMC	Shielded	9.843 "	250 mm	6000 MHz	Female	AMMC Plug Right Angle	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial AMMC to AMMC 1.13mm OD Coaxial Cable 11.811" (300.00mm)

Technical documentation and resources

No documents available
