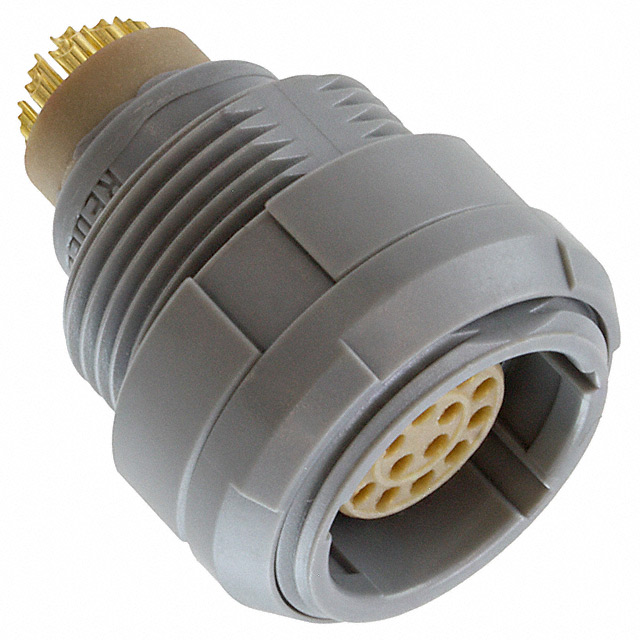

CKB.M16.GLLG

Active

LEMO

CONN RCPT FMALE 16P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet P Series Catalog

CKB.M16.GLLG

Active

LEMO

CONN RCPT FMALE 16P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet P Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CKB.M16.GLLG

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	6 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut
Number of Positions	16
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M16
Shielding	Unshielded

CKB.M16 Series

Circular Push Pull Connectors

Part	Contact Finish - Mating	Applications	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Insert Material	Primary Material	Current Rating (Amps)	Color	Mounting Type	Connector Type	Shielding	Orientation	Features	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Shell Material	Contact Size	Contact Shape	Contact Type	Note	Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Termination	Mounting Feature	Material	For Use With/Related Products	Accessory Type	Number of Positions
LEMO CRB.M16.GLL.C72G	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16	5.3 mm 7.2 mm	0.209 in 0.283 in	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Plastic	6 A	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Unshielded	B	Backshell	IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)
LEMO CAG.316.YL			M16											G		IP50				16		0.7 mm	Circular	Crimp	Note: Contacts Not Included; Insert Only Requires Shell	For Male Pins
LEMO CRB.M16.GYM.C92GZ	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16			Polysulfone (PSU)	Polyetheretherketone (PEEK)	Plastic	6 A	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Unshielded	B	Backshell	IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)						0.362 in	0.287 in	9.2 mm	7.3 mm	Crimp
LEMO CRB.M16.GLL.C72GZ	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16	5.3 mm 7.2 mm	0.209 in 0.283 in	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Plastic	6 A	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Unshielded	B	Backshell	IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)
LEMO CKB.M16.GLVG	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16				Polyetheretherketone (PEEK)	Plastic	6 A	Gray	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Unshielded	B		IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)										Solder	Front and Rear Side Nut
LEMO CAM.130.TG										Gray																							Polyetherimide (PEI)	GMA.2B Strain Relief	Nut
LEMO CAG.319.YL			M19											G		IP50						0.7 mm	Circular	Crimp	Note: Contacts Not Included; Insert Only Requires Shell	For Male Pins										19
LEMO CKB.M16.GLYG	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16				Polyetheretherketone (PEEK)	Plastic	6 A	Gray		Receptacle Female Sockets	Unshielded	B		IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)											Front and Rear Side Nut
LEMO CRB.M16.GLL.C92Z	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16			Polysulfone (PSU)	Polyetheretherketone (PEEK)	Plastic	6 A		Free Hanging (In-Line)	Receptacle Female Sockets	Unshielded	B	Backshell	IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)						0.362 in	0.287 in	9.2 mm	7.3 mm
LEMO CKB.M16.GLLG	Gold	Automotive Industrial Medical Testing Equipment & Measurement	M16				Polyetheretherketone (PEEK)	Plastic	6 A	Gray		Receptacle Female Sockets	Unshielded	B		IP50	150 °C	-50 °C	Detent Lock Push-Pull	16	Polysulfone (PSU)											Front and Rear Side Nut
