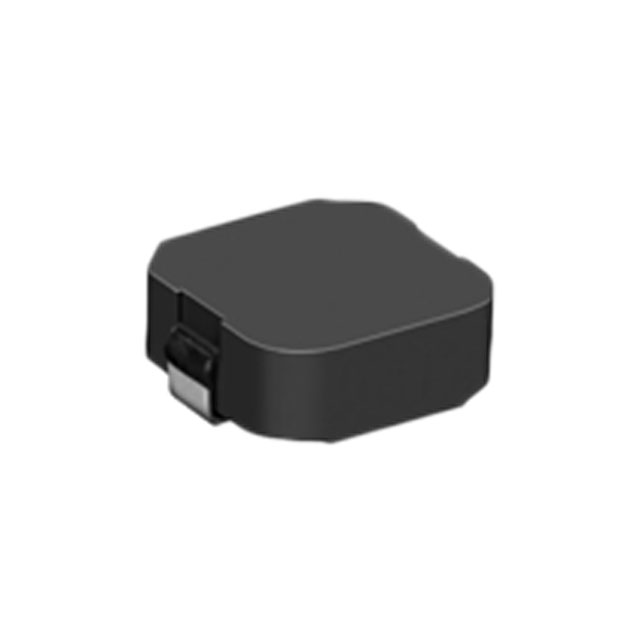

FDUE1260-H-R45N=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 450NH 42A 0.58MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
FDUE1260-H-R45N=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 450NH 42A 0.58MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FDUE1260-H-R45N=P3 |
|---|---|
| Current - Saturation (Isat) | 41.8 A |
| Current Rating (Amps) | 42 A |
| DC Resistance (DCR) | 0.58 mOhm |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 450 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.563 in |
| Size / Dimension [x] | 14.3 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [y] | 12.7 mm |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FDUE1260 Series
450 nH Shielded Inductor 42 A 0.58mOhm Nonstandard
Documents
Technical documentation and resources
No documents available
