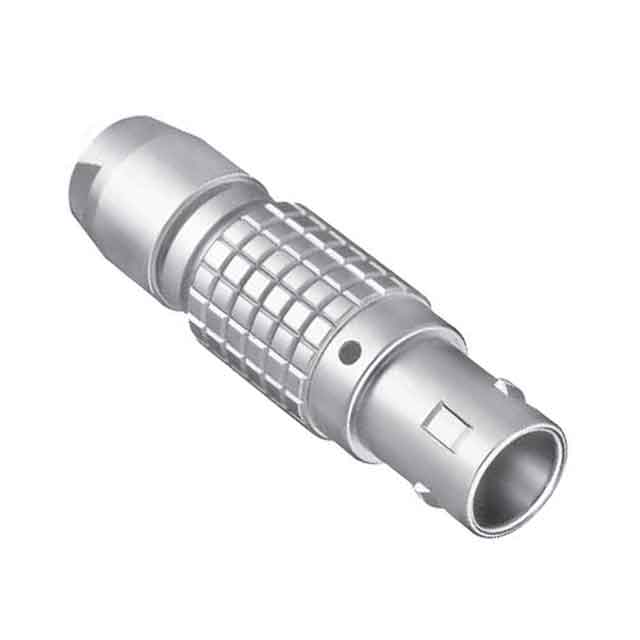

FGG.1B.306.CLAD72Z

Active

LEMO

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGG.1B.306.CLAD72Z

Active

LEMO

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGG.1B.306.CLAD72Z

Backshell Material, Plating	Brass, Chrome
Cable Opening [custom]	0.283 in, 0.244 in
Cable Opening [custom]	7.2 mm, 6.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	306
Shielding	Shielded

GMD.00.028 Series

Circular Push Pull Connectors 19P CRIMP SCKT RECPT CABLE COLLET 7.2MM

...

Part	Material	Color	Accessory Type	For Use With/Related Products	Contact Finish - Mating	Backshell Material, Plating	Termination	Ingress Protection	Insert Material	Shell Material	Mounting Type	Shielding	Fastening Type	Current Rating (Amps)	Connector Type	Contact Material	Features	Material Flammability Rating	Number of Positions	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shield Termination	Mating Cycles	Body Material	Connector Style	Dielectric Material	Impedance	Mounting Feature	Center Contact Plating	Voltage Rating	Contact Termination	Includes	Center Contact Material	Housing Color	Body Finish	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
LEMO GMD.00.028.DA	Thermoplastic Polyurethane (TPU)	Blue	Strain Relief	00 Series Connector
LEMO FGG.2B.306.CYCD99Z		Silver			Gold	Brass Chrome	Crimp	IP50	Polyetheretherketone (PEEK)	Brass	Free Hanging (In-Line)	Shielded	Push-Pull	12 A	Male Pins Plug	Brass	Backshell	UL94 V-0	6	306	-55 °C	250 °C	Metal	Chrome	0.362 in 0.39 in	9.2 mm 9.9 mm	1 µm	39.4 µin	G
LEMO XSG.00.250.NTNZ								IP50			Panel Mount Right Angle Through Hole		Push-Pull		Female Socket Receptacle						-55 °C	260 ░C								Solder	5000	Brass	NIM-CAMAC CD/N 549	Polytetrafluoroethylene (PTFE)	50 Ohms	Bulkhead - Front Side Nut	Gold	700 VDC	Solder	1 Connector 1 Lockwasher 2 Nuts	Bronze	Silver	Nickel
LEMO FGG.1B.306.CLAD72Z		Silver			Gold	Brass Chrome		IP50	Polyetheretherketone (PEEK)	Brass	Free Hanging (In-Line)	Shielded	Push-Pull	7 A	Male Pins Plug	Brass	Backshell	UL94 V-0	6	306	-55 °C	250 °C	Metal	Chrome	6.2 mm 7.2 mm		1 µm	39.4 µin	G															0.244 in 0.283 in
LEMO HMG.0B.307.CLLP		Silver			Gold			IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)	Brass		Shielded	Push-Pull	2.5 A	Receptacle Female Sockets	Bronze	Ground Potted	UL94 V-0	7	307	-20 C	100 °C	Metal	Chrome			1.5 Ám	59 Áin	G							Bulkhead - Front Side Nut
LEMO GMA.2B.051.RA		Blue	Strain Relief	2S Series Connector
LEMO FGG.4B.806.CLAM826		Silver			Gold	Brass Chrome		IP50	Polyetheretherketone (PEEK)	Brass	Free Hanging (In-Line)	Shielded	Push-Pull	10 A	Male Pins Plug	Brass	Backshell	UL94 V-0	7	806	-55 °C	250 °C	Metal	Chrome			1 µm	39.4 µin	G																8.2 mm	7.2 mm	0.283 in	0.323 in
LEMO FGG.1B.302.CLAD62Z		Silver			Gold	Brass Chrome		IP50	Polyetheretherketone (PEEK)	Brass	Free Hanging (In-Line)	Shielded	Push-Pull	15 A	Male Pins Plug	Brass	Backshell	UL94 V-0	2	302	-55 °C	250 °C	Metal	Chrome			1 µm	39.4 µin	G																6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO EGG.2K.810.CLW		Silver			Gold			IP66/IP68	Polyetheretherketone (PEEK)	Brass		Shielded	Push-Pull	7 A	Receptacle Female Sockets	Copper		UL94 V-0		810	-55 °C	200 °C	Metal	Chrome					G							Bulkhead - Rear Side Nut													11	1	10
LEMO FGG.1K.308.CYCC60Z		Silver			Gold	Brass Chrome	Crimp	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Free Hanging (In-Line)	Shielded	Push-Pull	5 A	Male Pins Plug	Brass	Backshell	UL94 V-0	8	308	-55 °C	200 °C	Metal	Chrome	5.6 mm 6 mm		1 µm	39.4 µin	G															0.22 in 0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.64
		10	$ 39.09
		25	$ 37.40
		50	$ 36.19
		100	$ 34.99
		250	$ 33.06

Description

General part information

GMD.00.028 Series

Circular Push Pull Connectors 19P CRIMP SCKT RECPT CABLE COLLET 7.2MM
