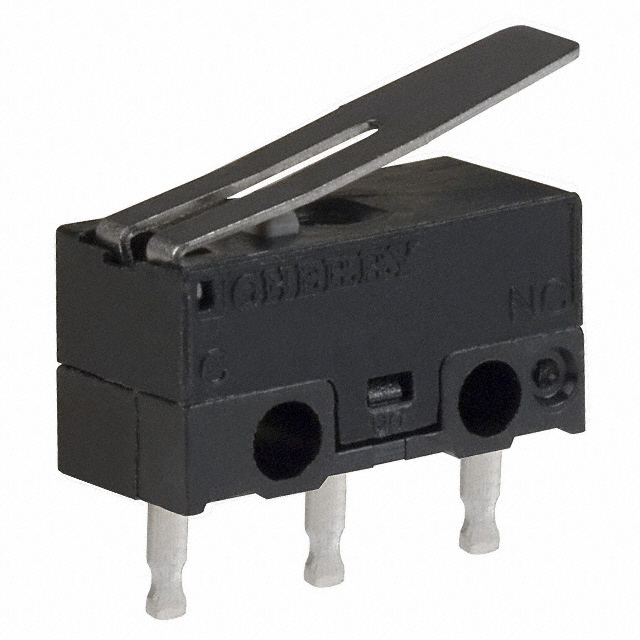

DG23-B1LA

Obsolete

ZF Electronics

SWITCH SNAP ACT SPDT 0.05A 30V

Search across all available documentation for this part.

Obsolete

ZF Electronics

SWITCH SNAP ACT SPDT 0.05A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Position	Operating Position	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Pretravel	Pretravel	Operating Force	Actuator Type	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Circuit	Overtravel	Overtravel	Termination Style	Ingress Protection	Differential Travel	Differential Travel	Electrical Life	Switch Function
ZF Electronics DG23-B3RA	12.4 mm	0.488 in	-25 °C	85 °C	1000000 Cycles	1.5 mm	0.06 in	60 gf	Lever Roller	50 mA	30 V	Through Hole Right Angle	SPDT	0.022 in	0.55 mm	PC Pin	IP40	0.5 mm	0.02 in	200000 Cycles	On-Mom
ZF Electronics DG23-B3LA	6.8 mm	0.268 "	-25 °C	85 °C	1000000 Cycles	1.8 mm	0.071 in		Lever Straight	50 mA	30 V	Through Hole Right Angle	SPDT	0.022 in	0.55 mm	PC Pin	IP40	0.5 mm	0.02 in	200000 Cycles	On-Mom
ZF Electronics DG23-B1LA	6.8 mm	0.268 "	-25 °C	85 °C	1000000 Cycles	1.8 mm	0.071 in		Lever Straight	50 mA	30 V	Through Hole	SPDT	0.022 in	0.55 mm	PC Pin	IP40	0.5 mm	0.02 in	200000 Cycles	On-Mom
ZF Electronics DG23-B1RA	12.4 mm	0.488 in	-25 °C	85 °C	1000000 Cycles	1.5 mm	0.06 in	60 gf	Lever Roller	50 mA	30 V	Through Hole	SPDT	0.022 in	0.55 mm	PC Pin	IP40	0.5 mm	0.02 in	200000 Cycles	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Through Hole
