181-12011

Active

HELLERMANNTYTON

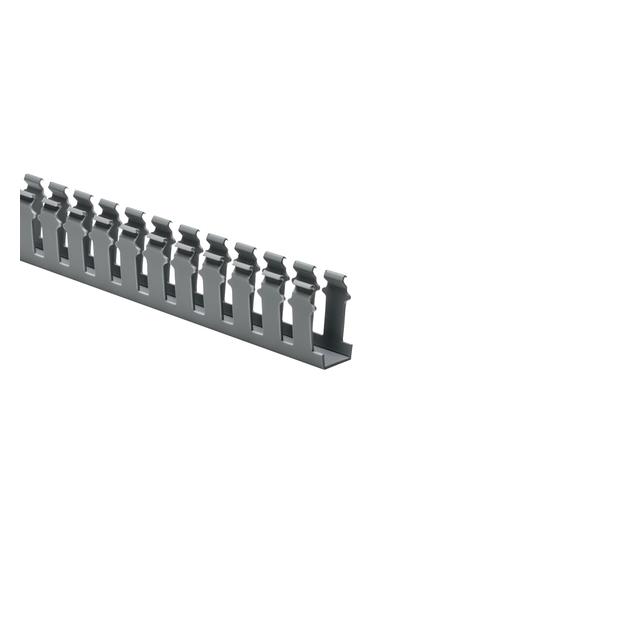

SLOTTED WALL WIRING DUCT, 1" X 2", ADHESIVE, PVC, GRAY, 120 FT/CARTON

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SLOTTED WALL WIRING DUCT, 1" X 2", ADHESIVE, PVC, GRAY, 120 FT/CARTON

Technical Specifications

Parameters and characteristics for this part

Specification	181-12011

Color	Gray
Features	Pre-Punched Mounting Holes, Self Extinguishing
Height [z]	51 mm
Height [z]	2.008 in
Length	6 ft
Length	1.83 m
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Adhesive, Screw
Width	25.4 mm
Width [x]	1 in
Wire Duct Type	Slotted (Raceway), Base

Part	Wire Duct Type	Mounting Type	Color	Length	Length	Width	Width [x]	Height [z]	Height [z]	Material	Features
HELLERMANNTYTON 181-12010	Base Slotted (Raceway)	Adhesive Screw	Gray	6 ft	1.83 m	25.4 mm	1 in	51 mm	2.008 in	Poly-Vinyl Chloride (PVC)	Pre-Punched Mounting Holes Self Extinguishing
HELLERMANNTYTON 181-12003	Base Slotted (Raceway)	Screw	Blue	6 ft	1.83 m	25.4 mm	1 in	51 mm	2.008 in	Poly-Vinyl Chloride (PVC)
HELLERMANNTYTON 181-12011	Base Slotted (Raceway)	Adhesive Screw	Gray	6 ft	1.83 m	25.4 mm	1 in	51 mm	2.008 in	Poly-Vinyl Chloride (PVC)	Pre-Punched Mounting Holes Self Extinguishing
HELLERMANNTYTON 181-12002		Screw	White	6 ft	1.83 m	25.4 mm	1 in	51 mm	2.008 in	Poly-Vinyl Chloride (PVC)	Pre-Punched Mounting Holes Self Extinguishing
HELLERMANNTYTON 181-12012	Base Slotted (Raceway)	Adhesive Screw	White	6 ft	1.83 m	25.4 mm	1 in	51 mm	2.008 in	Poly-Vinyl Chloride (PVC)	Pre-Punched Mounting Holes Self Extinguishing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
