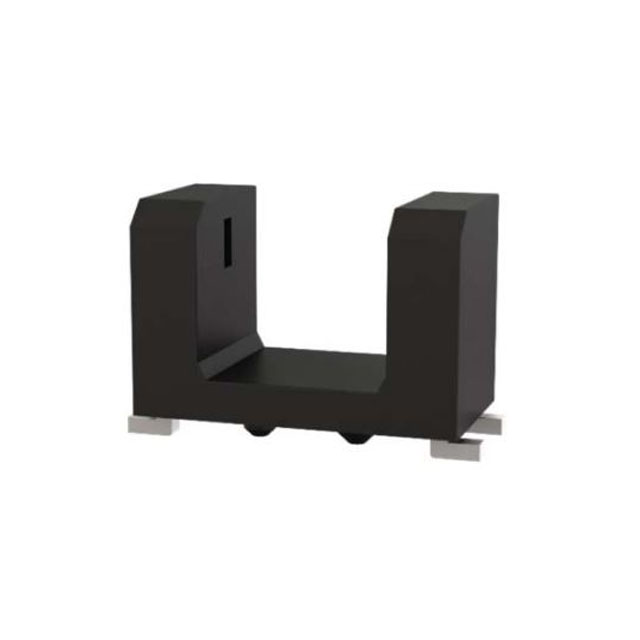

RPI-0451E
ActiveRohm Semiconductor
4.5MM WIDE GAP, ECO-FRIENDLY, TRANSMISSION TYPE PHOTOINTERRUPTER
Deep-Dive with AI
Search across all available documentation for this part.
RPI-0451E
ActiveRohm Semiconductor
4.5MM WIDE GAP, ECO-FRIENDLY, TRANSMISSION TYPE PHOTOINTERRUPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RPI-0451E |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 30 mA |
| Current - DC Forward (If) (Max) [Max] | 35 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Phototransistor |
| Package / Case | Module, Slotted |
| Response Time | 10 µs |
| Sensing Distance | 0.177 " |
| Sensing Distance | 4.5 mm |
| Sensing Method | Transmissive |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.85 | |
| 5 | $ 1.56 | |||
| 10 | $ 1.45 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.14 | |||
| 500 | $ 0.96 | |||
| Digi-Reel® | 1 | $ 1.85 | ||
| 5 | $ 1.56 | |||
| 10 | $ 1.45 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.14 | |||
| 500 | $ 0.96 | |||
| Tape & Reel (TR) | 1000 | $ 0.89 | ||
| 2000 | $ 0.83 | |||
| 3000 | $ 0.79 | |||
| 5000 | $ 0.75 | |||
| 7000 | $ 0.73 | |||
| 10000 | $ 0.70 | |||
| Newark | Each | 1 | $ 1.27 | |
| 10 | $ 1.04 | |||
| 100 | $ 0.99 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.81 | |||
| 3000 | $ 0.79 | |||
| 10000 | $ 0.70 | |||
Description
General part information
RPI-0451E Series
Energy Saving, High Efficiency, Wide Gap Transmission type Photointerrupters. The light receiving element uses a phototransistor. ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.
