100-11-31-221
ActiveAdvanced Photonix

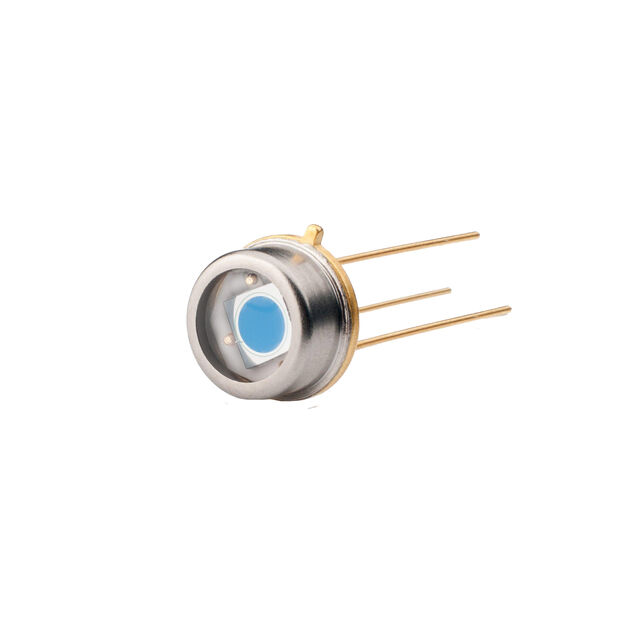

SENSOR PHOTODIODE 660NM TO5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100-11-31-221
ActiveAdvanced Photonix
SENSOR PHOTODIODE 660NM TO5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100-11-31-221 |
|---|---|
| Active Area | 5.067 mm² |
| Color - Enhanced | Red |
| Current - Dark (Typ) | 12 nA |
| Diode Type | PIN |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Response Time | 6 ns |
| Responsivity @ nm | 0.55 A/W |
| Spectral Range [Max] | 1100 nm |
| Spectral Range [Min] | 350 nm |
| Viewing Angle [custom] | 90 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 75 V |
| Wavelength | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 43.66 | |
Description
General part information
100-11 Series
Photodiode 660nm 6ns 90°
