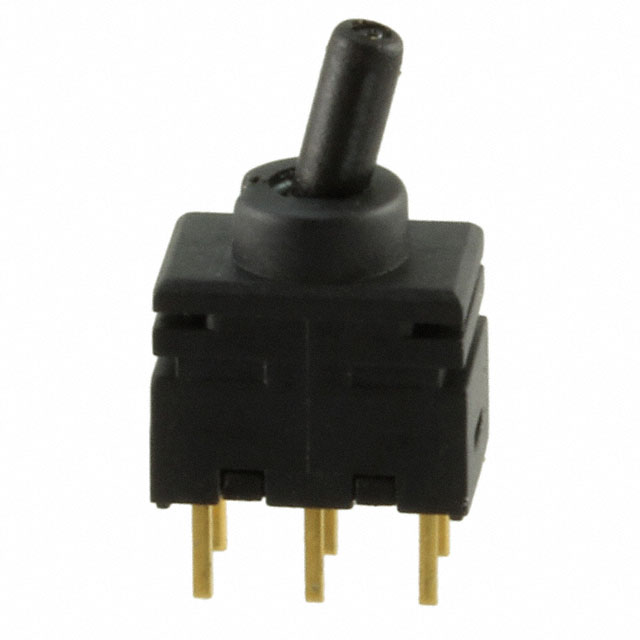

A9TS21-0011

Active

Omron Electronics Inc-EMC Div

SWITCH TOGGLE DPDT 100MA 28V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH TOGGLE DPDT 100MA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	A9TS21-0011

Actuator Length [x]	3.8 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Circuit	Ingress Protection	Mounting Type	Electrical Life	Voltage Rating - DC	Switch Function	Illumination	Features	Bushing Thread	Termination Style	Actuator Length [x]	Voltage Rating - AC
Omron Electronics Inc-EMC Div A9TS21-0011	-20 C	80 C	100 mA	Standard Round	DPDT	IP64 - Dust Tight Water Resistant	Through Hole	50000 Cycles	28 V	On-On	Non-Illuminated	Sealed - Flux Protection	Unthreaded	PC Pin	3.8 mm	28 V
Omron Electronics Inc-EMC Div A9TS210013	-20 C	80 C	100 mA	Standard Round	DPDT	IP64 - Dust Tight Water Resistant	Right Angle Through Hole Vertical	50000 Cycles	28 V	On-On	Non-Illuminated	Sealed - Flux Protection	Unthreaded	PC Pin	3.8 mm	28 V
Omron Electronics Inc-EMC Div A9TS21-0012	-20 C	80 C	100 mA	Standard Round	DPDT	IP64 - Dust Tight Water Resistant	Through Hole Right Angle	50000 Cycles	28 V	On-On	Non-Illuminated	Sealed - Flux Protection	Unthreaded	PC Pin	3.8 mm	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole
