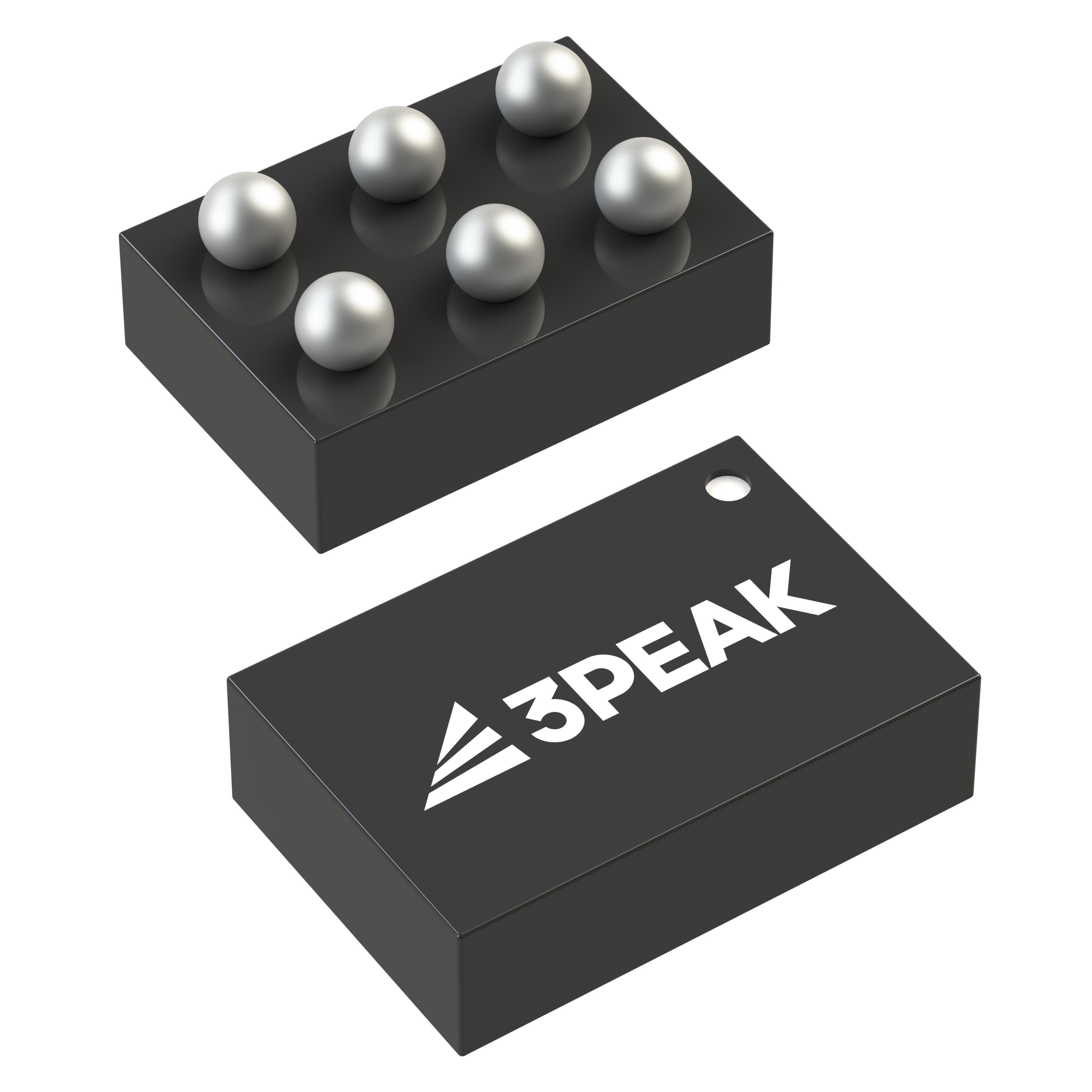

TPQ05100-WS4R
Active3PEAK
STEP-UP SYNCHRONOUS REGULATOR WL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPQ05100-WS4R
Active3PEAK
STEP-UP SYNCHRONOUS REGULATOR WL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPQ05100-WS4R |
|---|---|
| Current - Output | 600 mA |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 6-UFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP |
| Supplier Device Package [x] | 1.23 |
| Supplier Device Package [y] | 0.83 |
| Synchronous Rectifier | True |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 0.9 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.76 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 1.50 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.80 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Tape & Reel (TR) | 3000 | $ 0.38 | ||
| 6000 | $ 0.36 | |||
| 15000 | $ 0.35 | |||
Description
General part information
TPQ05100 Series
Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 600mA 6-UFBGA, WLCSP
