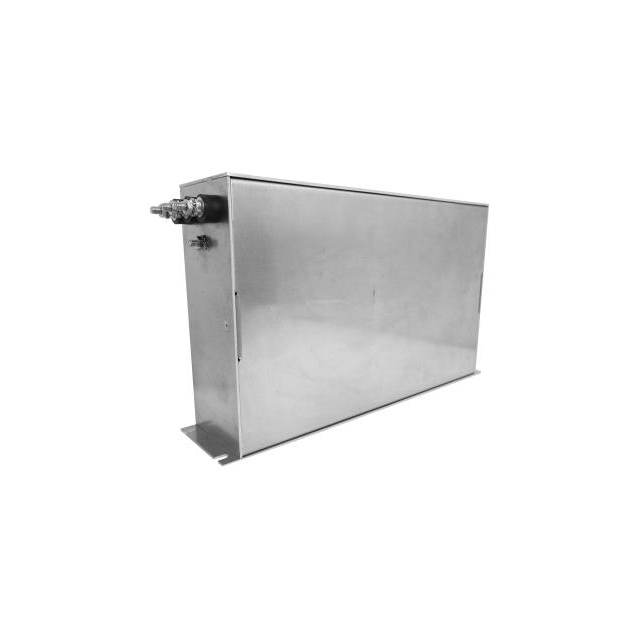

RP327-75-0-W

Active

Astrodyne TDI

THREE-PHASE (ANGLE CONNECTION) BASE INSTALLATION EMC FILTERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP327-75-0-W

Active

Astrodyne TDI

THREE-PHASE (ANGLE CONNECTION) BASE INSTALLATION EMC FILTERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP327-75-0-W

Applications	General Purpose
Approval Agency	CE, cURus, CSA, SEMKO
Configuration	Two Stage
Current	75 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

RP327 Series

...

Part	Termination Style	Voltage - Rated AC	Configuration	Mounting Type	Applications	Approval Agency	Current	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [custom]	Voltage - Rated AC (Phase to Ground/Neutral)
Astrodyne TDI RP327-42-1000-W	Wire Leads	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	42 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-42-100-C	Terminal Block	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	42 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-55-2000-W	Wire Leads	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	55 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-7-1000-S	Threaded Post (M5)	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	7 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-16-1000-S	Threaded Post (M5)	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	16 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-75-100-W	Wire Leads	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	75 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-75-0-W	Wire Leads	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	75 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-130-100-S	Threaded Post (M10)	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	130 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-250-10-S	Threaded Post (M10)	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	250 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV
Astrodyne TDI RP327-130-1000-S	Threaded Post (M10)	480 V	Two Stage	Chassis Mount	General Purpose	CE CSA cURus SEMKO	130 A	Three Phase (Delta)	60 Hz	50 Hz	-25 °C 100 °C	3.5 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 468.63
LCSC	Piece	1	$ 552.16
		200	$ 518.59
		500	$ 501.26

Description

General part information

RP327 Series

Three Phase (Delta) EMC/EMI Line Filter 75 A 480V 50/60Hz Two Stage Wire Leads
