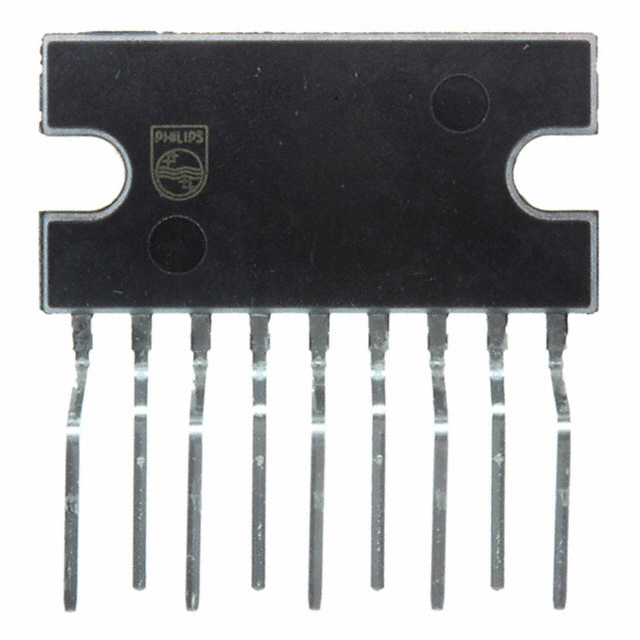

TDA3617J/N1,112

Obsolete

Freescale Semiconductor - NXP

IC REG LINEAR 9V/5V/3.3V 9-PDBS

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC REG LINEAR 9V/5V/3.3V 9-PDBS

Technical Specifications

Parameters and characteristics for this part

Specification	TDA3617J/N1,112

Control Features	Hold, Enable
Current - Output	1.3 A, 300 mA, 600 mA
Mounting Type	Through Hole
Number of Regulators	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	9-SIP Formed Leads
Protection Features	Short Circuit, Over Current, Transient Voltage, Over Temperature, Load Dump
PSRR	70 dB
Supplier Device Package	9-PDBS
Voltage - Input (Max) [Max]	17.5 V
Voltage - Output (Min/Fixed)	5 V, 9 V, 3.3 V
Voltage Dropout (Max) [Max]	1.5 V, 1 V

Part	Voltage Dropout (Max) [Max]	Control Features	Output Configuration	Number of Regulators	Protection Features	Mounting Type	Output Type	Current - Output	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	PSRR
Freescale Semiconductor - NXP TDA3617J/N1,112	1 V 1.5 V	Enable Hold	Positive	3	Load Dump Over Current Over Temperature Short Circuit Transient Voltage	Through Hole	1.81 mOhm	1.3 A 300 mA 600 mA	3.3 V 5 V 9 V	9-PDBS	17.5 V	9-SIP Formed Leads	85 °C	-40 °C	70 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 3 Output 1.3A, 600mA, 300mA 9-PDBS
