346-043-559-658

Active

EDAC Inc.

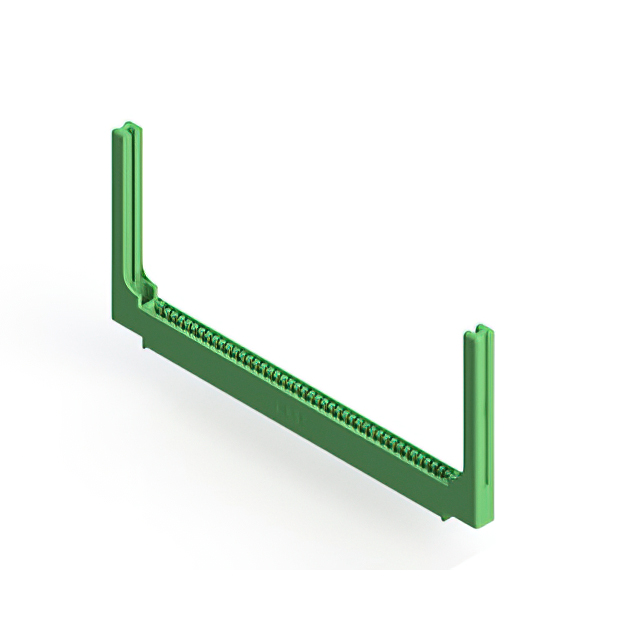

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

346-043-559-658

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-043-559-658

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	43
Number of Positions/Bay/Row [custom]	43
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

346-043 Series

Part	Pitch [x]	Pitch [x]	Flange Feature	Read Out	Gender	Contact Type	Termination Rows	Card Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Rows	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Number of Positions	Color	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 346-043-521-678	0.125 in	3.18 mm	4-40 Threaded Insert Top Mount Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Card Guides	10 Áin	0.25 Ám	Through Hole	43	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-559-658	0.125 in	3.18 mm	4-40 Threaded Insert Top Mount Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Card Guides	10 Áin	0.25 Ám	Through Hole Right Angle	43	1	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-520-658	0.125 in	3.18 mm	4-40 Threaded Insert Top Mount Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Card Guides	10 Áin	0.25 Ám	Through Hole	43	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-559-104	0.125 in	3.18 mm	Flush Mount Top Opening Unthreaded	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic		10 Áin	0.25 Ám	Through Hole Right Angle	43	1	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green	3.96 mm	0.156 in
EDAC Inc. 346-043-541-602	0.125 in	3.18 mm		Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic		10 Áin	0.25 Ám	Through Hole	43	1	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green			3.25 mm	0.128 in
EDAC Inc. 346-043-540-107	0.125 in	3.18 mm	Flush Mount M3 Threaded Insert Top Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic		10 Áin	0.25 Ám	Through Hole	43	1	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-541-158	0.125 in	3.18 mm	4-40 Flush Mount Threaded Insert Top Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Card Guides	10 Áin	0.25 Ám	Through Hole	43	1	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-521-608	0.125 in	3.18 mm	4-40 Threaded Insert Top Mount Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic		10 Áin	0.25 Ám	Through Hole	43	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-521-607	0.125 in	3.18 mm	M3 Threaded Insert Top Mount Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic		10 Áin	0.25 Ám	Through Hole	43	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green
EDAC Inc. 346-043-526-108	0.125 in	3.18 mm	4-40 Flush Mount Threaded Insert Top Opening	Single	Female	Cantilever	1	Non Specified - Single Edge	Gold	-40 °C	105 ░C	Polyester Thermoplastic		10 Áin	0.25 Ám	Through Hole	43	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	43	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.71
LCSC	Piece	1	$ 14.87
		200	$ 5.75
		500	$ 5.55
		1000	$ 5.45
Newark	Each	1	$ 14.30
		100	$ 12.56
		250	$ 11.95
		500	$ 10.93
		1000	$ 9.54

Description

General part information

346-043 Series

43 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
