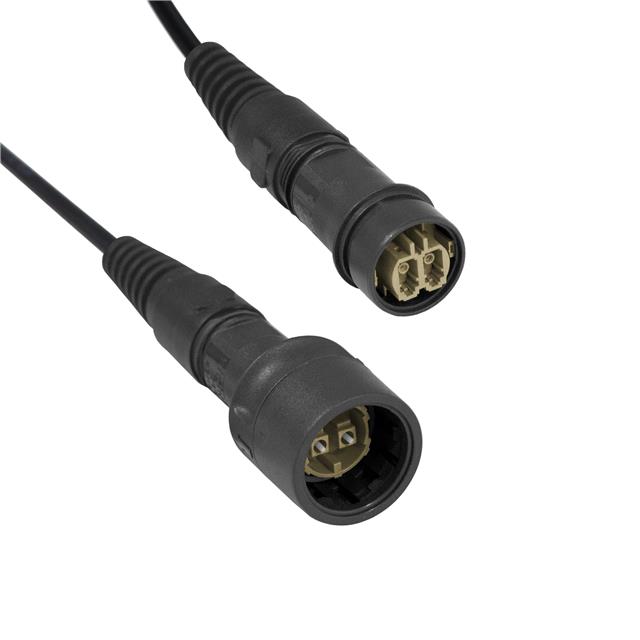

PXF6055BAJ

Active

BULGIN LIMITED

FIBRE CABLE, LC DUPLEX-LC DUPLEX, MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

PXF6055BAJ

Active

BULGIN LIMITED

FIBRE CABLE, LC DUPLEX-LC DUPLEX, MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXF6055BAJ

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius	30 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Buffered Fiber
Color - Cable	Orange
Color - Connectors	Aqua
Features	IP66, IP68, IP69K, Low Smoke
Fiber Type	62.5/125
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length - Overall [x]	300 m
Length - Overall [x]	984.3 ft
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Type	Multimode, Duplex, OM1

PXF6055 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall	Length - Overall	2nd Connector	Features	Cable Diameter [diameter]	Cable Diameter [diameter]	1st Connector	Bend Radius [radius]	Cable Type	Type	Fiber Type	Ratings	Color - Connectors	Length - Overall [x]	Length - Overall [x]	Color - Cable	Jacket (Insulation) Material	Bend Radius	Insertion Loss
BULGIN LIMITED PXF6055AAK	70 °C	-25 °C	1476.4 ft	450 m	LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex Multimode OM3	50/125	LSZH	Aqua
BULGIN LIMITED PXF6055BAJ	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex		Buffered Fiber	Duplex Multimode OM1	62.5/125		Aqua	300 m	984.3 ft	Orange	Poly-Vinyl Chloride (PVC)	30 mm
BULGIN LIMITED PXF6055AAJ	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex Multimode OM3	50/125	LSZH	Aqua	300 m	984.3 ft
BULGIN LIMITED PXF6055AAF	70 °C	-25 °C	328.1 '	100 m	LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex Multimode OM3	50/125	LSZH	Aqua
BULGIN LIMITED PXF6055BAD	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex		Buffered Fiber	Duplex Multimode OM1	62.5/125		Aqua	25 m	82 ft	Orange	Poly-Vinyl Chloride (PVC)	30 mm
BULGIN LIMITED PXF6055BAG	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex		Buffered Fiber	Duplex Multimode OM1	62.5/125		Aqua	150 m	492.1 '	Orange	Poly-Vinyl Chloride (PVC)	30 mm
BULGIN LIMITED PXF6055CAH	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex OS1 Singlemode		LSZH	Aqua	200 m	656.2 '	Yellow			0.2 dB
BULGIN LIMITED PXF6055AAG	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex Multimode OM3	50/125	LSZH	Aqua	150 m	492.1 '
BULGIN LIMITED PXF6055AAC	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex Multimode OM3	50/125	LSZH	Aqua	15 m	49.2 '
BULGIN LIMITED PXF6055AAD	70 °C	-25 °C			LC Duplex	IP66 IP68 IP69K Low Smoke	2 mm	0.08 in	LC Duplex	10 mm	Buffered Fiber	Duplex Multimode OM3	50/125	LSZH	Aqua	25 m	82 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 2687.31
Newark	Each	1	$ 3247.36
		10	$ 3056.34
		25	$ 2960.83
		50	$ 2769.81
		100	$ 2616.99

Description

General part information

PXF6055 Series

Cable Fiber Optic LC Duplex To LC Duplex 62.5/125 984.3' (300.0m)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
