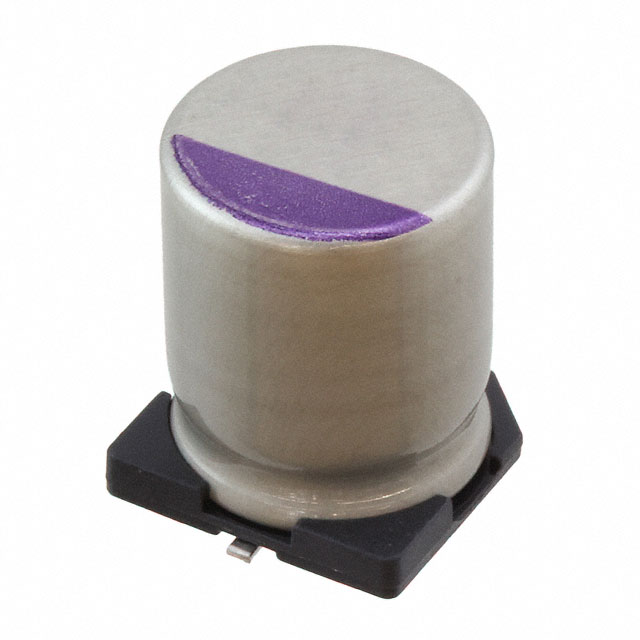

2R5SVPC2700M

Active

Panasonic Industrial Automation Sales

CAP ALUMINUM POLYMER 2700UF 2.5VDC 20%( 10 X 12.6MM) SMD 0.012 OHM 5.07A 2000H 105°C T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2R5SVPC2700M

Active

Panasonic Industrial Automation Sales

CAP ALUMINUM POLYMER 2700UF 2.5VDC 20%( 10 X 12.6MM) SMD 0.012 OHM 5.07A 2000H 105°C T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2R5SVPC2700M

Applications	General Purpose
Capacitance	2700 µF
ESR (Equivalent Series Resistance)	12 mOhms
Height - Seated (Max) [Max] [z]	12.7 mm
Height - Seated (Max) [Max] [z]	0.5 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	5.07 A
Ripple Current @ Low Frequency	253.5 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Surface Mount Land Size [x]	0.406 in
Surface Mount Land Size [x]	10.3 mm
Surface Mount Land Size [y]	10.3 mm
Surface Mount Land Size [y]	0.406 "
Tolerance	20 %
Type	Polymer
Voltage - Rated	2.5 V

2R5SVPC Series

Part	Voltage - Rated	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Capacitance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 2R5SVPC1500M	2.5 V	Surface Mount	10 mOhm	257.5 mA	5.15 A	2000 Hrs	12 mm	0.472 "	20 %	1.5 mF	0.327 "	8.3 mm	0.327 in	8.3 mm	0.315 "	8 mm	Radial Can - SMD	Polymer	General Purpose	105 ░C	-55 °C
Panasonic Industrial Automation Sales 2R5SVPC820M	2.5 V	Surface Mount	9 mOhms	269 mA	5.38 A	2000 Hrs	12 mm	0.472 "	20 %	820 µF	0.327 "	8.3 mm	0.327 in	8.3 mm	0.315 "	8 mm	Radial Can - SMD	Polymer	General Purpose	105 ░C	-55 °C
Panasonic Industrial Automation Sales 2R5SVPC2700M	2.5 V	Surface Mount	12 mOhms	253.5 mA	5.07 A	2000 Hrs	12.7 mm	0.5 in	20 %	2700 µF	0.406 in	10.3 mm	0.406 "	10.3 mm	0.394 in	10 mm	Radial Can - SMD	Polymer	General Purpose	105 ░C	-55 °C
Panasonic Industrial Automation Sales 2R5SVPC680M	2.5 V	Surface Mount	20 mOhms	168.5 mA	3.37 A	2000 Hrs			20 %	68 µF	0.327 "	8.3 mm	0.327 in	8.3 mm	0.315 "	8 mm	Radial Can - SMD	Polymer	General Purpose	105 ░C	-55 °C	7 mm	0.276 "
Panasonic Industrial Automation Sales 2R5SVPC180MY	2.5 V	Surface Mount	24 mOhms	110 mA	2.2 A	2000 Hrs			20 %	180 çF	0.209 in	5.3 mm	0.209 in	5.3 mm	0.197 "	5 mm	Radial Can - SMD	Polymer	General Purpose	105 ░C	-55 °C	6 mm	0.236 in
Panasonic Industrial Automation Sales 2R5SVPC390M	2.5 V	Surface Mount	25 mOhm	120.5 mA	2.41 A	2000 Hrs			20 %	390 µF	0.26 in	6.6 mm	0.26 in	6.6 mm	0.248 in	6.3 mm	Radial Can - SMD	Polymer	General Purpose	105 ░C	-55 °C	6 mm	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.39
		10	$ 1.84
		50	$ 1.69
		100	$ 1.29
	Digi-Reel®	1	$ 2.39
		10	$ 1.84
		50	$ 1.69
		100	$ 1.29
	Tape & Reel (TR)	400	$ 1.07
		800	$ 1.00
		1200	$ 0.96
		2000	$ 0.93
		2800	$ 0.92
		4000	$ 0.91

Description

General part information

2R5SVPC Series

CAP ALUMINUM POLYMER 2700UF 2.5VDC 20%( 10 X 12.6MM) SMD 0.012 OHM 5.07A 2000H 105°C T/R
