MHBBWT-0000-000C0BE240E-SB01

Active

New Energy

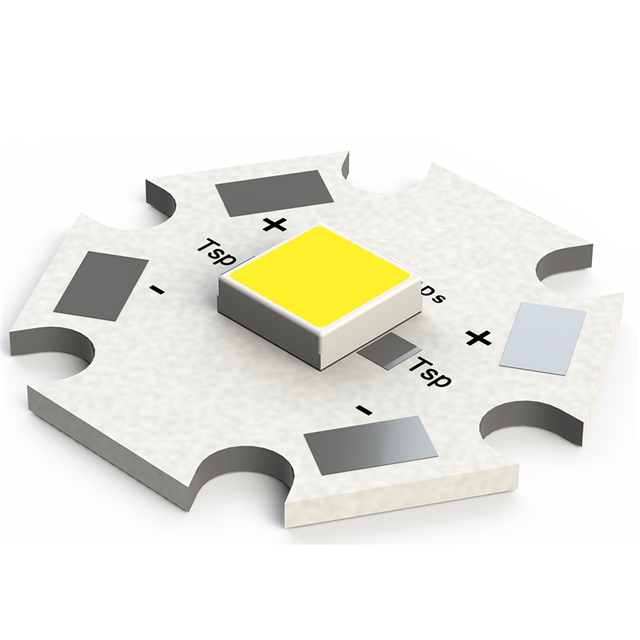

LED MODULE MHB-B 4000K STARBOARD

Search across all available documentation for this part.

Active

New Energy

LED MODULE MHB-B 4000K STARBOARD

Technical Specifications

Parameters and characteristics for this part

Specification	MHBBWT-0000-000C0BE240E-SB01

CCT (K)	4000 K
Color	Neutral, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	700 mA
Current - Test	480 mA
Lens Type	Flat
Lumens/Watt @ Current - Test	146 lm/W
Luminous Flux @ Current/Temperature	613 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	8.75 V

Part	Lens Type	Current - Test	Color	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Size / Dimension [diameter]	Configuration	Current - Max [Max]	CCT (K)	Type	Viewing Angle	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Temperature - Test
New Energy MHBBWT-0000-000C0BE240E-SB01	Flat	480 mA	Neutral White	8.75 V	70	19.89 mm	Starboard	700 mA	4000 K	LED Module	115 °	613 lm	146 lm/W	85 °C
New Energy MHBBWT-0000-000C0HC427G-SB01	Flat	480 mA	Warm White	8.75 V	80	19.89 mm	Starboard	700 mA	2700 K	LED Module	115 °	493 lm	117 lm/W	85 °C
New Energy MHBBWT-0000-000C0BE265E-SB01	Flat	480 mA	Cool White	8.75 V	70	19.89 mm	Starboard	700 mA	6500 K	LED Module	115 °	613 lm	146 lm/W	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.24

General part information

LED Lighting COBs Engines Modules LED Module MHB-B Horticulture White, Neutral Starboard
