VBM201-75

Active

Cinch Connectivity Solutions Trompeter

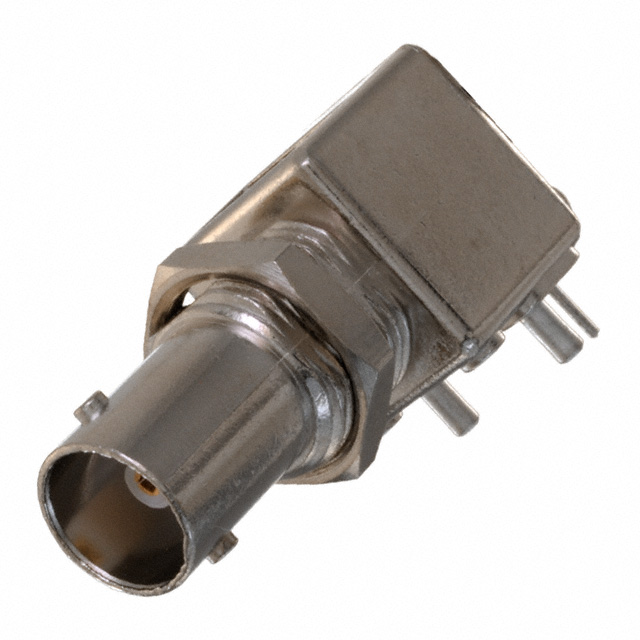

CONN BNC JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	VBM201-75

Body Finish	Nickel
Body Material	Zinc Alloy
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Includes	Body Finish	Mounting Type	Voltage Rating	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Number of Ports	Contact Termination	Dielectric Material	Shield Termination	Mating Cycles	Fastening Type	Body Material	Connector Type	Frequency - Max [Max]	Housing Color	Center Contact Material	Impedance	Mounting Feature
Cinch Connectivity Solutions Trompeter VBM201-75	1 Connector 1 Lockwasher 1 Nut	Nickel	Panel Mount Right Angle Through Hole	500 V	BNC	85 °C	-55 °C	Gold	1	Solder	Polypropylene (PP)	Solder	500	Bayonet Lock	Zinc Alloy	Female Socket Jack	1 GHz	Silver	Phosphor Bronze	75 Ohms	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
