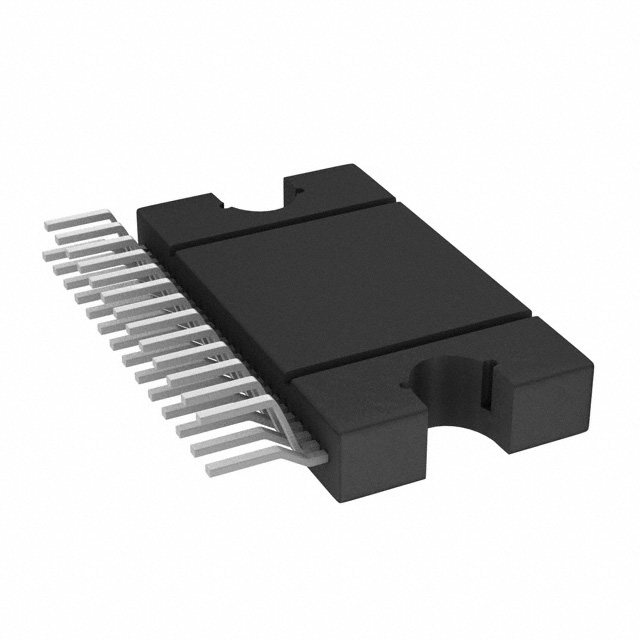

TDF8546AJV/N1ZU

Active

Freescale Semiconductor - NXP

TDF8546AJV/N1Z/ TUBE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

TDF8546AJV/N1Z/ TUBE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TDF8546AJV/N1ZU

Max Output Power x Channels @ Load	64 W, 40 W, 45 W
Mounting Type	Through Hole
Output Type	4-Channel (Quad)
Package / Case	27-SIP, Formed Leads
Type	Class AB
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6 V

Part	Max Output Power x Channels @ Load	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Output Type	Mounting Type	Package / Case	Supplier Device Package	Features	Package / Case	Max Output Power x Channels @ Load [custom]
Freescale Semiconductor - NXP TDF8546AJV/N1ZU	40 W 45 W 64 W	18 V	6 V	Class AB	4-Channel (Quad)	Through Hole	27-SIP Formed Leads
Freescale Semiconductor - NXP TDF8546JV/N2ZU	40 W 45 W 64 W	18 V	6 V	Class AB	4-Channel (Quad)	Through Hole	27-SIP Formed Leads
Freescale Semiconductor - NXP TDF8546TH/N2ZJ	4 Ohm 25 W	18 V	6 V	Class AB	4-Channel (Quad)	Surface Mount	36-BSSOP Exposed Pad	36-HSOP	Depop Short-Circuit Thermal Protection	0.433 in 11 mm	4
Freescale Semiconductor - NXP TDF8546AJS/N1ZS	4 Ohm 25 W	18 V	6 V	Class AB	4-Channel (Quad)	Surface Mount	27-PowerSMD Module	27-DBSMSP	Depop Short-Circuit Thermal Protection		4
Freescale Semiconductor - NXP TDF8546JS/N2,512	4 Ohm 25 W	18 V	6 V	Class AB	4-Channel (Quad)	Surface Mount	27-PowerSMD Module	27-DBSMSP	Depop Short-Circuit Thermal Protection		4
Freescale Semiconductor - NXP TDF8546ATH/N1ZJ	4 Ohm 25 W	18 V	6 V	Class AB	4-Channel (Quad)	Surface Mount	36-BSSOP Exposed Pad	36-HSOP	Depop Short-Circuit Thermal Protection	0.433 in 11 mm	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	456	$ 20.91
Newark	Each	250	$ 21.00
		500	$ 20.40

General part information

Amplifier IC 4-Channel (Quad) Class AB DBS27P

Technical documentation and resources

No documents available
