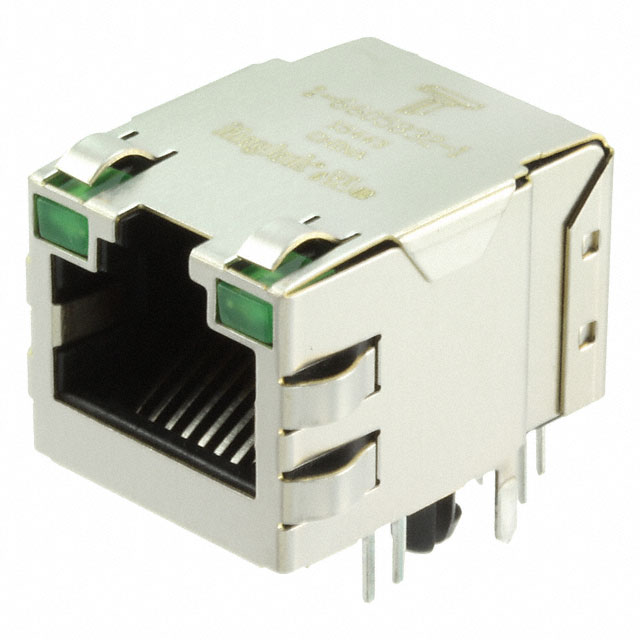

1-6605832-1

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	1-6605832-1

Applications	Power over Ethernet (PoE), 10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Green - Green
Mounting Type	Through Hole
Number of Cores per Jack	6
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Shield Material	Connector Type	Height Above Board [z]	Height Above Board [z]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Number of Cores per Jack	Mounting Type	LED Color	Orientation	Contact Material	Number of Rows	Contact Finish	Termination	Shielding	Number of Ports	Contact Finish Thickness	Contact Finish Thickness	Applications
TRP Connector B.V. 1-6605832-1	Brass	RJ45	14.1 mm	0.555 in	Polyester Polyethylene Terephthalate (PET)	70 °C	0 °C	Up	6	Through Hole	Green - Green	90 °	Phosphor Bronze	1	Gold	Solder	Shielded EMI Finger	1	50 µin	1.27 µm	10/100 Base-T AutoMDIX Power over Ethernet (PoE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
