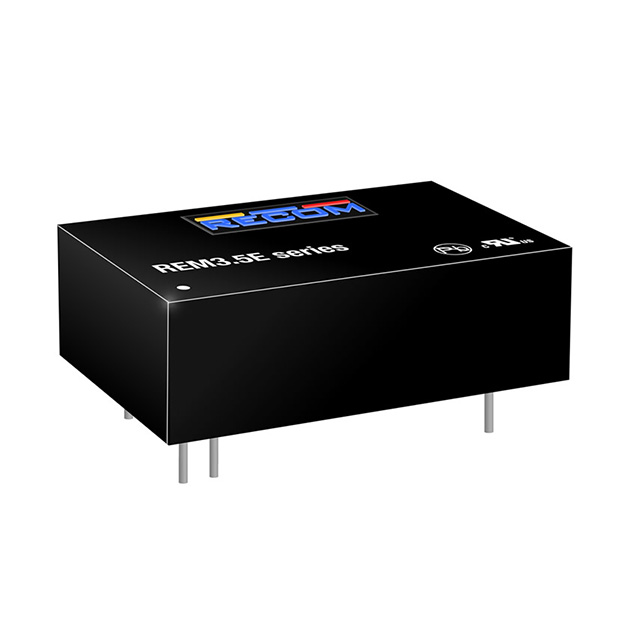

REM3.5E-0509D/R8/A/X1

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 3.5 W, 2 OUTPUT, 9 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

REM3.5E-0509D/R8/A/X1

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 3.5 W, 2 OUTPUT, 9 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM3.5E-0509D/R8/A/X1

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max)	194 mA
Current - Output (Max)	194 mA
Efficiency	80 %
Features	SCP, UVLO, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 7 Leads
Power (Watts)	3.5 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	8 kV
Voltage - Output 1	9 V
Voltage - Output 2	-9 V

REM3.5E-4805 Series

Isolated DC/DC Converters - Through Hole 3.5W 9-18Vin +/-15Vout 117mA

...

Part	Type	Current - Output (Max) [Max]	Voltage - Output 1	Approval Agency	Applications	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Mounting Type	Efficiency	Number of Outputs	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]
RECOM Power REM3.5E-4824S/R8/A/X1	Isolated Module	145 mA	24 V	CB cURus	Medical	8 kV	36 V	3.5 W	75 V	OCP OVP SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole	83 %	1
RECOM Power REM3.5E-0509D/R8/A/X1	Isolated Module		9 V	CB cURus	Medical	8 kV	4.5 V	3.5 W	9 V	OCP OVP SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole	80 %	2	-9 V	194 mA	194 mA
RECOM Power REM3.5E-2405S/R10/A/X1	Isolated Module	700 mA	5 V	CB cURus	Medical	10 kV	18 V	3.5 W	36 V	OCP OVP SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole	81 %	1
RECOM Power REM3.5E-2409D/R6/A/SMD/X1	Isolated Module		9 V	CB cURus	Medical	6000 V	18 V	3.5 W	36 V	OCP OVP SCP UVLO	85 °C	-40 °C	31.8 mm	0.43 "	1.25 "		0.8 in		24-SMD Module 18 Leads	Surface Mount		2	-9 V	194 mA	194 mA	10.9 mm	20.3 mm
RECOM Power REM3.5E-2409D/R8/A/CTRL	Isolated Module		9 V	CB cURus	Medical	8 kV	18 V	3.5 W	36 V	OCP OVP Remote On/Off SCP	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole		2	-9 V	194 mA	194 mA
RECOM Power REM3.5E-0524S/R8/A/CTRL	Isolated Module	145 mA	24 V	CB cURus	Medical	8 kV	4.5 V	3.5 W	9 V	OCP OVP Remote On/Off SCP	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole		1
RECOM Power REM3.5E-4812S/R10/A/CTRL/X1	Isolated Module	290 mA	12 V	CB cURus	Medical	10 kV	36 V	3.5 W	75 V	OCP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole		1
RECOM Power REM3.5E-0512S/R8/A/CTRL/X1	Isolated Module	290 mA	12 V	CB cURus	Medical	8 kV	4.5 V	3.5 W	9 V	OCP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole		1
RECOM Power REM3.5E-1209S/R10/A/CTRL/X1	Isolated Module		9 V	CB cURus	Medical	10 kV	9 V	3.5 W	18 V	OCP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole	81 %	1
RECOM Power REM3.5E-4824S/R8/A/CTRL/X1	Isolated Module	145 mA	24 V	CB cURus	Medical	8 kV	36 V	3.5 W	75 V	OCP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 7 Leads	Through Hole	83 %	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 44.88
Newark	Each	10	$ 53.89
		25	$ 49.65
		50	$ 46.55
		100	$ 44.01
		250	$ 40.06
Sager	N/A	1	$ 47.00
		5	$ 45.48
		10	$ 43.38
		25	$ 42.09
		50	$ 41.47
		100	$ 40.30
		250	$ 37.59

Description

General part information

REM3.5E-4805 Series

Isolated DC/DC Converters - Through Hole 3.5W 9-18Vin +/-15Vout 117mA

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
