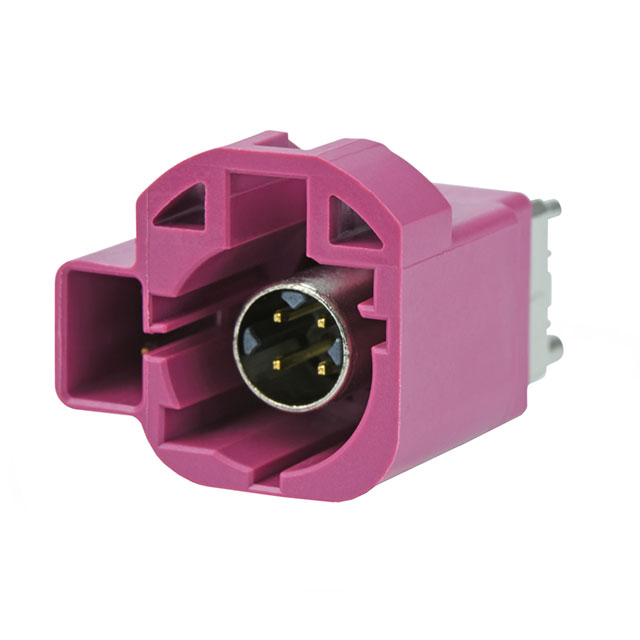

R41-B296H
ActiveMitsumi Electric Company Ltd
CONN HSD 4+2 REVERSE VERTICAL TY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R41-B296H
ActiveMitsumi Electric Company Ltd
CONN HSD 4+2 REVERSE VERTICAL TY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R41-B296H |
|---|---|
| Center Contact Material | Copper Alloy |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Latch Lock |
| Features | Code H, Board Guide |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Violet, Heather |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.03 | |
| 10 | $ 6.36 | |||
| 25 | $ 6.00 | |||
| 50 | $ 5.86 | |||
| Tape & Reel (TR) | 180 | $ 5.57 | ||
| 360 | $ 4.98 | |||
| 540 | $ 4.69 | |||
| 900 | $ 4.39 | |||
| 1260 | $ 4.10 | |||
| 1800 | $ 4.01 | |||
Description
General part information
R41-B Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
