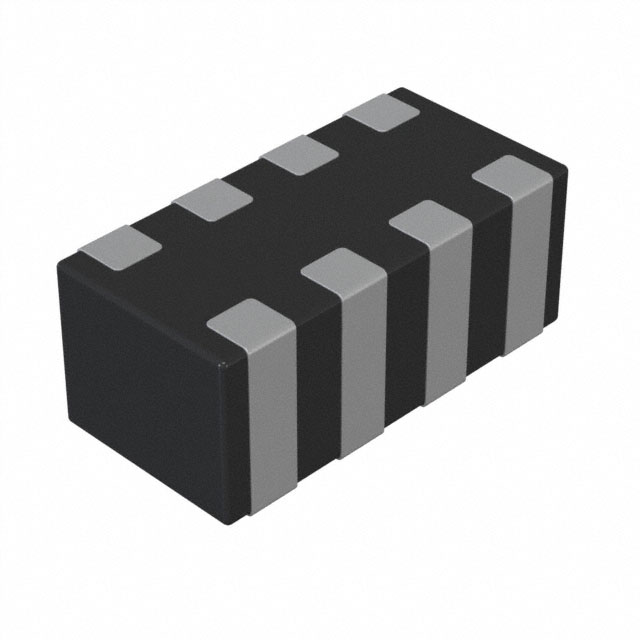

DLP2ADN161HL4L
ObsoleteMurata Power Solutions Inc.
DATA LINE FILTER, 4 FUNCTION(S), 5V, 0.1A, EIA STD PACKAGE SIZE 0804, 8 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DLP2ADN161HL4L
ObsoleteMurata Power Solutions Inc.
DATA LINE FILTER, 4 FUNCTION(S), 5V, 0.1A, EIA STD PACKAGE SIZE 0804, 8 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLP2ADN161HL4L |
|---|---|
| Current Rating (Max) [Max] | 100 mA |
| DC Resistance (DCR) (Max) [Max] | 3.13 Ohm |
| Height (Max) [Max] | 0.036 in |
| Height (Max) [Max] | 0.92 mm |
| Impedance @ Frequency | 160 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0804 (2010 Metric) |
| Package / Case | 8 Leads |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 1 mm |
| Size / Dimension [y] | 0.039 " |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DLP2ADN Series
4 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 100mA DCR 3.13Ohm
