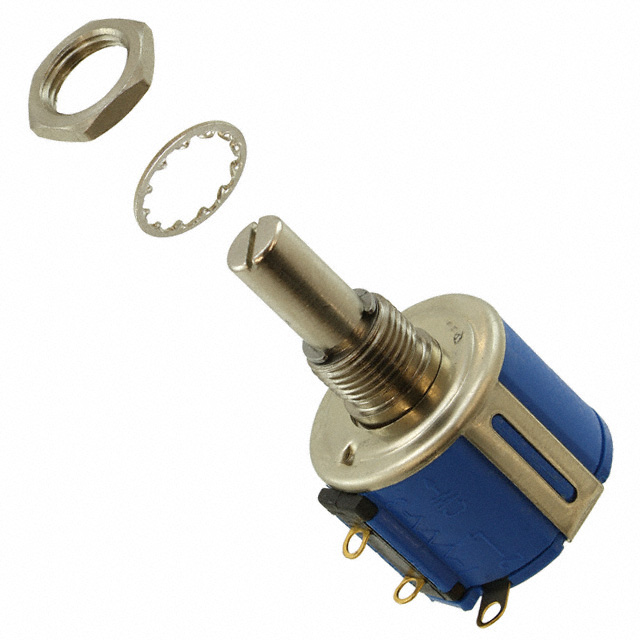

3543S-1-502L

Active

Bourns Inc.

RES POT 5K OHM 5% 1W 3(ELEC)/3(MECH)TURN 6.34MM (39.67 X 22.23 X 26.99MM) SOLDER LUG PANEL MOUNT

Search across all available documentation for this part.

Active

Bourns Inc.

RES POT 5K OHM 5% 1W 3(ELEC)/3(MECH)TURN 6.34MM (39.67 X 22.23 X 26.99MM) SOLDER LUG PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Size - Body [diameter]	Size - Body [diameter]	Number of Turns	Temperature Coefficient	Termination Style	Resistance (Ohms)	Actuator Length [z]	Actuator Length [z]	Resistive Material	Power (Watts)	Number of Gangs	Tolerance	Adjustment Type	Taper	Bushing Thread	Actuator Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Resistance (Ohms)
Bourns Inc. 3543S-1-102L	22.23 mm	0.875 "	3	50 ppm/°C	Solder Lug	1 kOhms	0.812 in	20.63 mm	Wirewound	1 W	1	5 %	User Defined	Linear	3/8-32	Slotted	6.34 mm	0.2497 in	1080 °
Bourns Inc. 3543S-1-202L	22.23 mm	0.875 "	3	50 ppm/°C	Solder Lug		0.812 in	20.63 mm	Wirewound	1 W	1	5 %	User Defined	Linear	3/8-32	Slotted	6.34 mm	0.2497 in	1080 °	2k
Bourns Inc. 3543S-1-502L	22.23 mm	0.875 "	3	50 ppm/°C	Solder Lug	5 kOhms	0.812 in	20.63 mm	Wirewound	1 W	1	5 %	User Defined	Linear	3/8-32	Slotted	6.34 mm	0.2497 in	1080 °
Bourns Inc. 3543S-1-103L	22.23 mm	0.875 "	3	50 ppm/°C	Solder Lug		0.812 in	20.63 mm	Wirewound	1 W	1	5 %	User Defined	Linear	3/8-32	Slotted	6.34 mm	0.2497 in	1080 °	10k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer 3.0 Turns Wirewound 1W Solder Lug
