SBC3-100-362

Active

KEMET

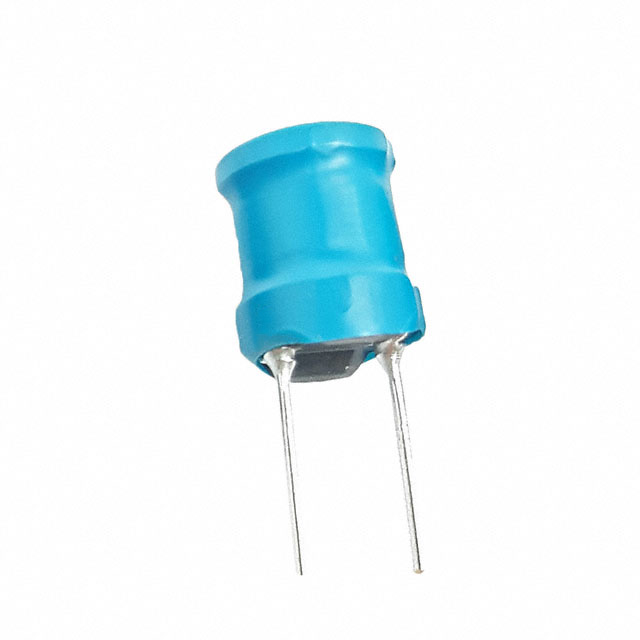

INDUCTOR, 10UH, 20%, 3.6A, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SBC3-100-362 +1

SBC3-100-362

Active

KEMET

INDUCTOR, 10UH, 20%, 3.6A, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet SBC3-100-362 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBC3-100-362

Current - Saturation (Isat)	3 A
Current Rating (Amps)	3.6 A
DC Resistance (DCR) [Max]	30 mOhm
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Inductance	10 µH
Inductance Frequency - Test	10 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Package / Case	Radial, Vertical Cylinder
Shielding	Unshielded
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Tolerance	20 %
Type	Wirewound, Drum Core

SBC3 Series

Part	Inductance Frequency - Test	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Shielding	Tolerance	Package / Case	Type	Mounting Type	Current Rating (Amps)	Current - Saturation (Isat)
KEMET SBC3-1R5-632	10 kHz	9 mm	0.354 in	0.354 in	9 mm	10 mOhm	1.5 µH	-20 C	105 ░C	Ferrite	Unshielded	20 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole	6.3 A
KEMET SBC3-331-551	10 kHz	9 mm	0.354 in	0.453 "	11.5 mm	720 mOhm	330 µH	-20 C	105 ░C	Ferrite	Unshielded	10 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole	0.55 A	530 mA
KEMET SBC3-6R8-392	10 kHz	9 mm	0.354 in	0.354 in	9 mm	30 mOhm	6.8 µH	-20 C	105 ░C	Ferrite	Unshielded	20 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole	3.9 A	4 A
KEMET SBC3-222-191	10 kHz	9 mm	0.354 in	0.453 "	11.5 mm	5.62 Ohm	2.2 mH	-20 C	105 ░C	Ferrite	Unshielded	10 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole		210 mA
KEMET SBC3-100-362	10 kHz	9 mm	0.354 in	0.354 in	9 mm	30 mOhm	10 µH	-20 C	105 ░C	Ferrite	Unshielded	20 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole	3.6 A	3 A
KEMET SBC3-122-281	10 kHz	9 mm	0.354 in	0.453 "	11.5 mm	2.7 Ohm	1.2 mH	-20 C	105 ░C	Ferrite	Unshielded	10 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole	0.28 A	280 mA
KEMET SBC3-151-791	10 kHz	9 mm	0.354 in	0.354 in	9 mm	360 mOhm	150 µH	-20 C	105 ░C	Ferrite	Unshielded	10 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole		810 mA
KEMET SBC3-1R2-752	10 kHz	9 mm	0.354 in	0.354 in	9 mm	10 mOhm	1.2 µH	-20 C	105 ░C	Ferrite	Unshielded	20 %	Radial Vertical Cylinder	Drum Core Wirewound	Through Hole	7.5 A	9.8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.90
		10	$ 0.76
		400	$ 0.50
		1200	$ 0.43
		5200	$ 0.40
		10000	$ 0.39
Newark	Each	10	$ 0.61
		25	$ 0.60
		50	$ 0.58
		100	$ 0.57
		500	$ 0.45
		1000	$ 0.44
		2500	$ 0.43

Description

General part information

SBC3 Series

10 µH Unshielded Drum Core, Wirewound Inductor 3.6 A 30mOhm Max Radial, Vertical Cylinder
