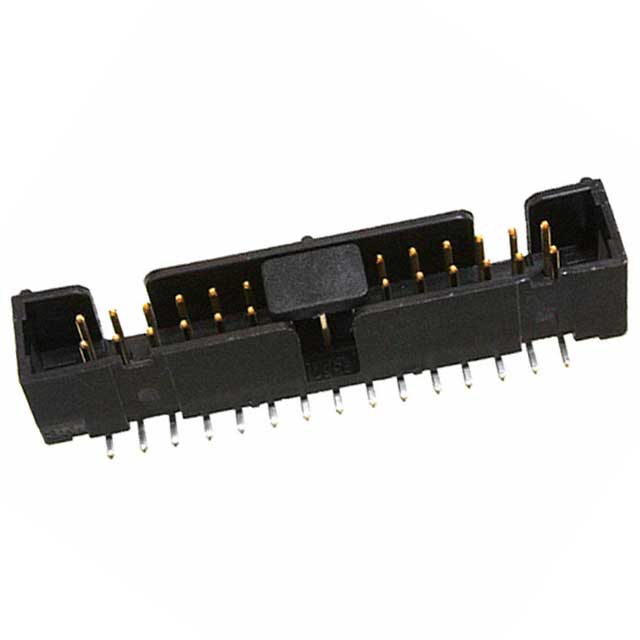

N2530-6V0C-RB-WF
Active3M (TC)
PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 30 CONTACTS, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
N2530-6V0C-RB-WF
Active3M (TC)
PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 30 CONTACTS, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | N2530-6V0C-RB-WF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.75 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Keying Slot |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
