RTQ2134GQWTF-21-QA-00

Active

Richtek USA Inc.

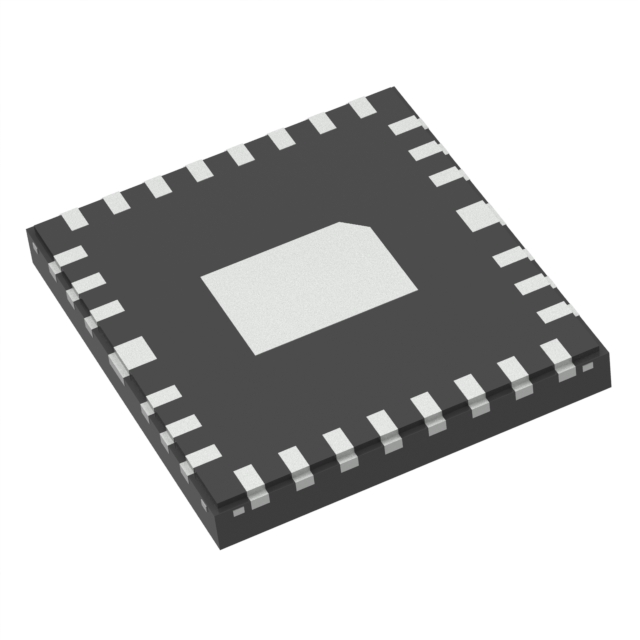

IC REG BUCK PROG 20A TRPL 30WQFN

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC REG BUCK PROG 20A TRPL 30WQFN

Technical Specifications

Parameters and characteristics for this part

Specification	RTQ2134GQWTF-21-QA-00

Current - Output	20 A
Frequency - Switching	2.1 MHz
Function	Step-Down
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	3
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Programmable
Package / Case	30-PowerWFQFN
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	3 V
Voltage - Output (Max) [Max]	1.85 V
Voltage - Output (Min/Fixed)	0.3 V

Part	Voltage - Input (Max) [Max]	Number of Outputs	Package / Case	Current - Output	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Output Type	Voltage - Output (Min/Fixed)	Topology	Mounting Type	Output Configuration	Voltage - Output (Max) [Max]	Synchronous Rectifier	Frequency - Switching
Richtek USA Inc. RTQ2134GQWTF-21-QA-00	6 V	3	30-PowerWFQFN	20 A	Step-Down	150 °C	-40 °C	3 V	Programmable	0.3 V	Buck	Surface Mount Wettable Flank	Positive	1.85 V		2.1 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.41
	Digi-Reel®	1	$ 6.41
	Tape & Reel (TR)	1500	$ 3.00

General part information

Buck Switching Regulator IC Positive Programmable 0.3V 3 Output 20A 30-PowerWFQFN
