UM62009TALLSET

Active

Bopla Enclosures

BOX ABS GRAY 11.45"L X 7.83"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ABS GRAY 11.45"L X 7.83"W

Technical Specifications

Parameters and characteristics for this part

Specification	UM62009TALLSET

Area (L x W)	89.7 in²
Area (L x W)	579 cm²
Color	Gray
Container Type	Box
Design	Split Sides and End Panel(s)
Height [z]	92.2 mm
Height [z]	3.63 "
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	290.9 mm
Size / Dimension [x]	11.453 in
Size / Dimension [y]	7.831 in
Size / Dimension [y]	198.9 mm
Thickness	0.138 in
Thickness	3.5 mm

Part	Material	Ratings	Container Type	Area (L x W)	Area (L x W)	Color	Design	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Bopla Enclosures UM62009TALLSET	Plastic ABS	IP40	Box	89.7 in²	579 cm²	Gray	Split Sides and End Panel(s)	0.138 in	3.5 mm	UL94 HB	92.2 mm	3.63 "	7.831 in	198.9 mm	290.9 mm	11.453 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.59

General part information

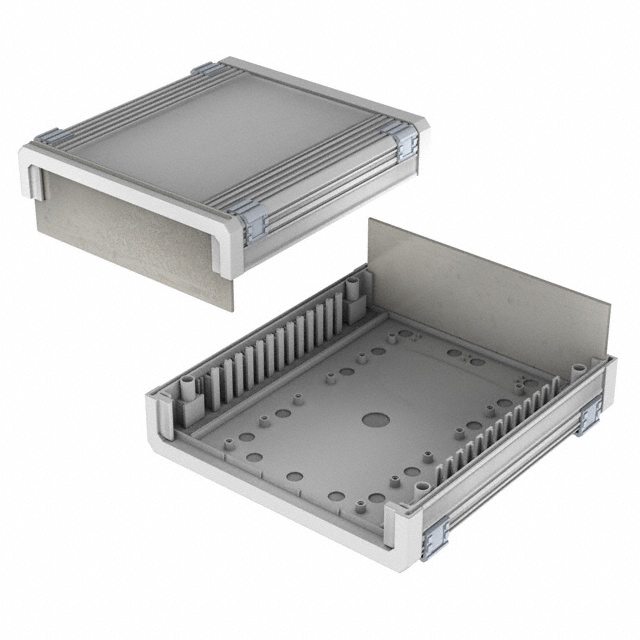

Box Plastic, ABS Gray Split Sides and End Panel(s) 11.453" L x 7.831" W (290.90mm x 198.90mm) X 3.630" (92.20mm)

Technical documentation and resources

No documents available
