RFAABNCPSMAP

Active

BULGIN LIMITED

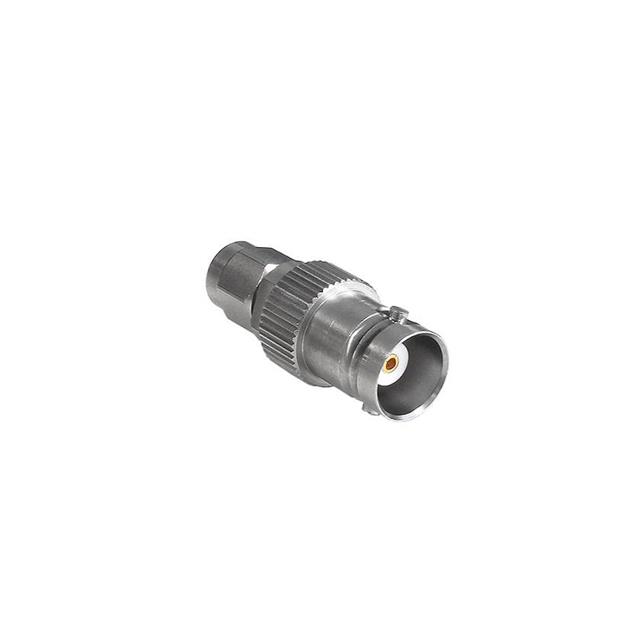

RF / COAXIAL CONNECTOR, INTER SERIES COAXIAL, 50 OHM

Search across all available documentation for this part.

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, INTER SERIES COAXIAL, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	RFAABNCPSMAP

Adapter Series	BNC to SMA
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	8 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Frequency - Max [Max]	Convert From (Adapter End)	Body Material	Adapter Series	Style	Dielectric Material	Mounting Type	Fastening Type	Mating Cycles	Adapter Type	Center Contact Material	Impedance	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender
BULGIN LIMITED RFAABNCJSMAP	Male Pin SMA Plug	8 GHz	BNC Jack Female Socket	Stainless Steel	BNC to SMA	Straight	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Bayonet Lock Threaded	500	Plug to Jack	Beryllium Copper	50 Ohms	Between Series	-65 ░C	165 °C
BULGIN LIMITED RFAABNCPSMAJ	Female Socket SMA Jack	8 GHz	BNC Plug Male Pin	Stainless Steel	BNC to SMA	Straight	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Bayonet Lock Threaded	500	Plug to Jack	Beryllium Copper	50 Ohms	Between Series	-65 ░C	165 °C
BULGIN LIMITED RFAABNCPSMAP	Male Pin SMA Plug	8 GHz	BNC Plug Male Pin	Stainless Steel	BNC to SMA	Straight	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Bayonet Lock Threaded	500	Plug to Plug	Beryllium Copper	50 Ohms	Between Series	-65 ░C	165 °C	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
