LWB6-5-12
ActivePolytron

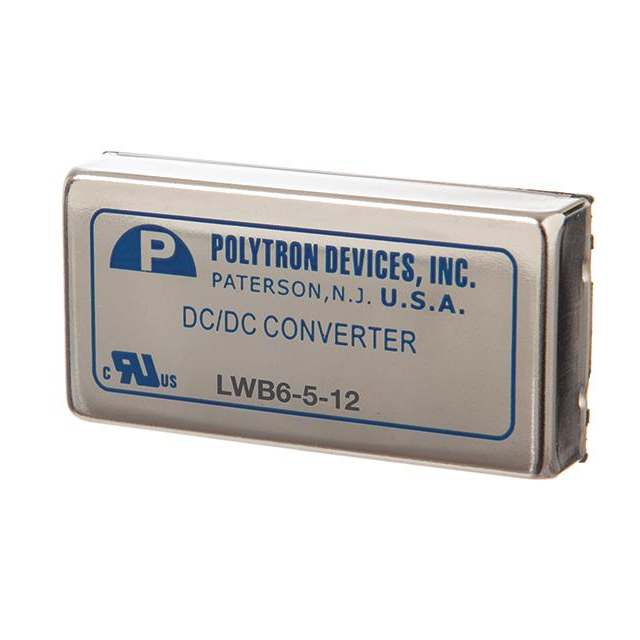

DC DC CONVERTER +/-12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LWB6-5-12
ActivePolytron
DC DC CONVERTER +/-12V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LWB6-5-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 250 mA |
| Current - Output (Max) | 250 mA |
| Efficiency | 85 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 61.00 | |
Description
General part information
LWB6-5 Series
Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 4.5V - 9V Input
