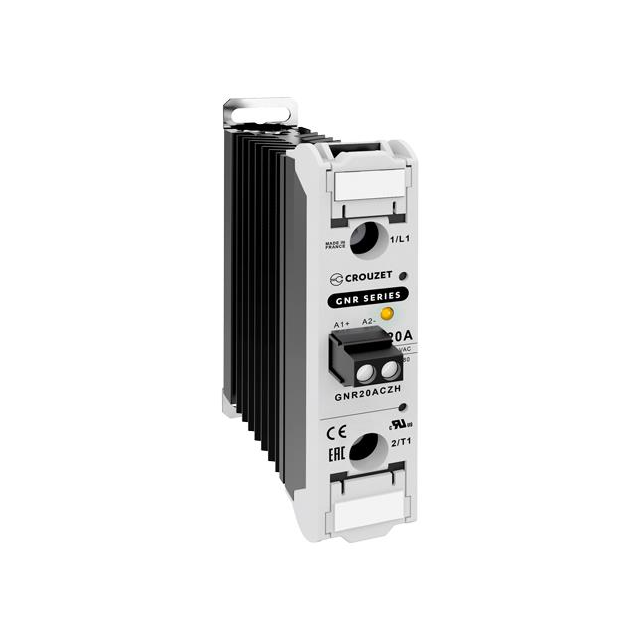

GNR20ACZH
ActiveCrouzet
SSR RELAY SPST-NO 20A 48-660V
Deep-Dive with AI
Search across all available documentation for this part.
GNR20ACZH
ActiveCrouzet
SSR RELAY SPST-NO 20A 48-660V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GNR20ACZH |
|---|---|
| Approval Agency | CE, cURus, VDE |
| Load Current | 20 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Supplier Device Package | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 280 VAC/DC |
| Voltage - Input [Min] | 180 VAC |
| Voltage - Load [Max] | 660 V |
| Voltage - Load [Min] | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 81.43 | |
Description
General part information
GNR20A Series
Solid State SPST-NO (1 Form A) Module
