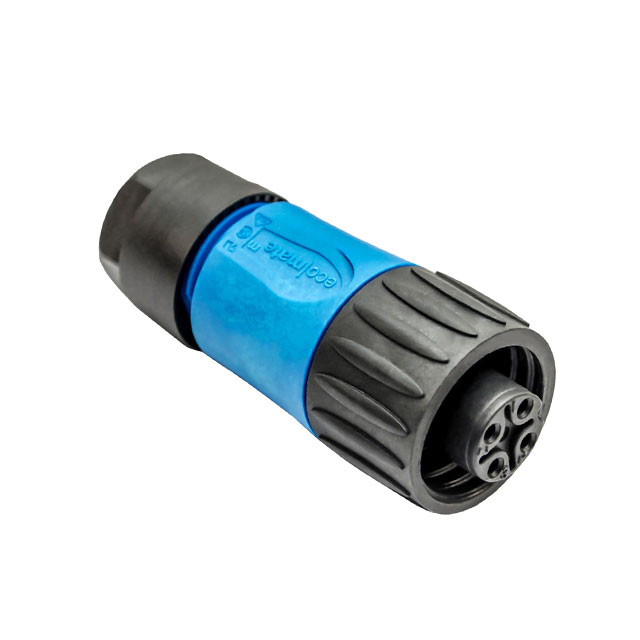

C01620D00311010
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 4P SILVER SCREW
Deep-Dive with AI
Search across all available documentation for this part.
C01620D00311010
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 4P SILVER SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C01620D00311010 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 16 A |
| Features | Cable Clamp, Strain Relief |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Termination | Screw |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.27 | |
| 10 | $ 12.12 | |||
| 25 | $ 11.36 | |||
| 50 | $ 10.82 | |||
| 100 | $ 10.30 | |||
| 250 | $ 9.66 | |||
| 500 | $ 9.20 | |||
| 750 | $ 9.12 | |||
| 1000 | $ 8.76 | |||
Description
General part information
C01620D003 Series
4 Position Circular Connector Plug, Female Sockets Screw
